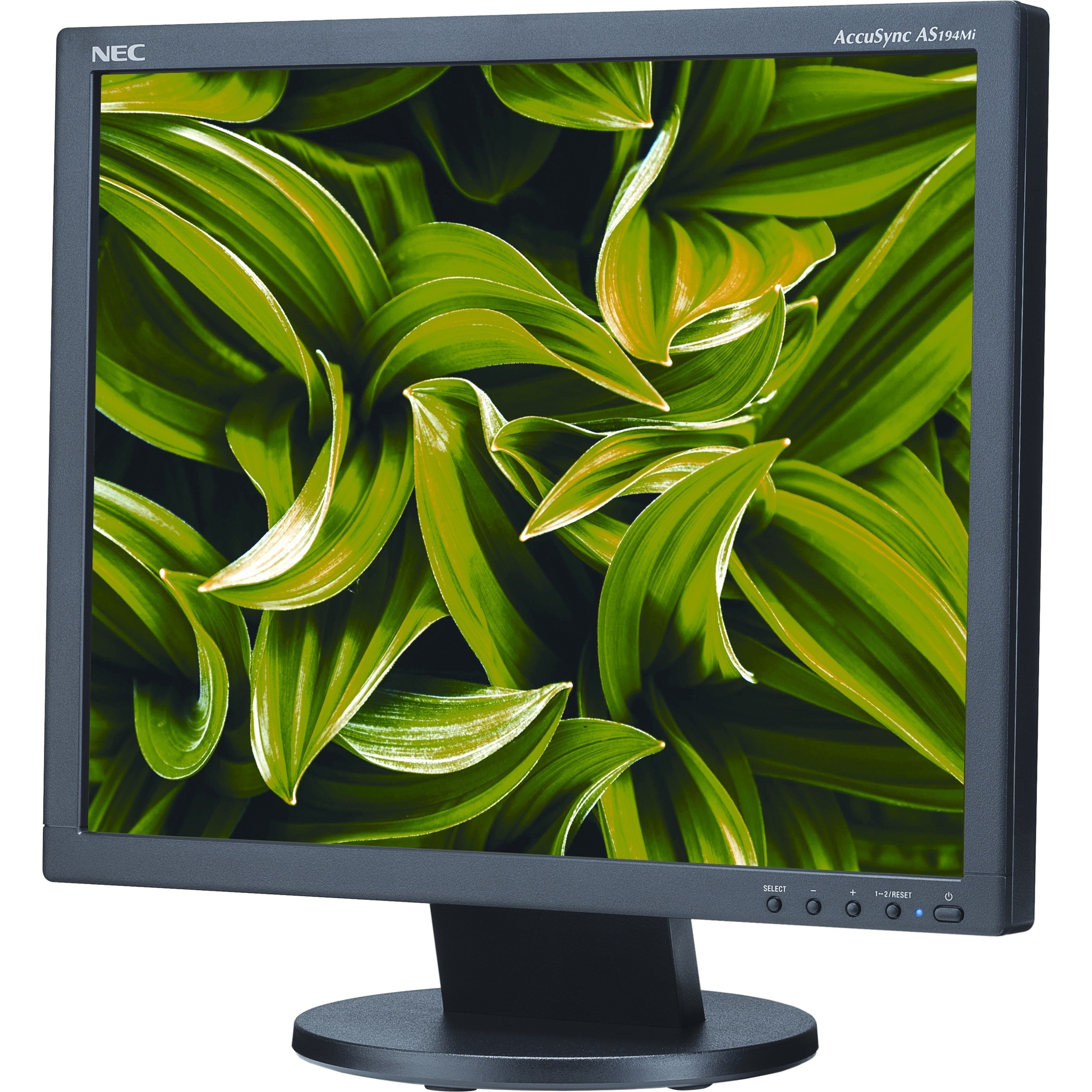

NEC Display AccuSync AS194MI-BK 19" SXGA WLED LCD Monitor - 5:4

  • SKU: NIN-5569|MFG PART: AS194MI-BK

$167.19

19" Class - In-plane Switching (IPS) Technology - 1280 x 1024 - 16.7 Million Colors - 250 Nit Typical - 6 ms - 75 Hz Refresh Rate - DVI - HDMI - VGA - DisplayPort
  • IPS active matrix LCD provides superior screen performance, including wide viewing angles and lifelike flesh tones
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • Ambix® dual-input technology allows for digital/analog compatibility with upgraded video cards and software as well as connection to two systems
  • Rapid Response™ technology delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
  • ECO Mode™ function helps save power, reduce heat and extend the life of the display by allowing you to dim the backlight
View Product OverviewView Reviews

PRODUCT OVERVIEW

19" Class - In-plane Switching (IPS) Technology - 1280 x 1024 - 16.7 Million Colors - 250 Nit Typical - 6 ms - 75 Hz Refresh Rate - DVI - HDMI - VGA - DisplayPort
  • IPS active matrix LCD provides superior screen performance, including wide viewing angles and lifelike flesh tones
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • Ambix® dual-input technology allows for digital/analog compatibility with upgraded video cards and software as well as connection to two systems
  • Rapid Response™ technology delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
  • ECO Mode™ function helps save power, reduce heat and extend the life of the display by allowing you to dim the backlight

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Sharp NEC Display Solutions Ltd.
Manufacturer Part Number:
AS194MI-BK
Manufacturer Website Address:
http://www.necdisplay.com
Brand Name:
NEC Display
Product Line:
AccuSync
Product Model:
AS194MI-BK
Product Name:
19 Value Desktop Monitor with LED Backlighting
Product Type:
LCD Monitor

Technical Information

Number of Screens:
1
Screen Size Class:
19
Viewable Screen Size:
19
Screen Mode:
SXGA
Panel Technology:
In-plane Switching (IPS) Technology
Response Time:
6 ms
Aspect Ratio:
5:4
Pixel Pitch:
11.4 mil
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
Desk Mountable
Backlight Technology:
WLED
HDCP Supported:
Yes
Features:
Eco Mode,Intelligent Power Manager (IPM) System,Plug & Play,XtraView+,On-screen Display (OSD),Display Power Management Signaling (DPMS),Power Management,Carbon Footprint Meter
Horizontal Frequency:
31.50 kHz to 81.10 kHz - Analog,31.50 kHz to 81.10 kHz - Digital
Vertical Frequency:
50 Hz to 75 Hz
Stand Adjustments:
Tilt

Video

Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit - Typical
Color Gamut:
72.7% Adobe RGB,70.8% NTSC,94.1% sRGB

Interfaces/Ports

DVI:
Yes
HDMI:
Yes
VGA:
Yes
DisplayPort:
Yes

Power Description

Operating Power Consumption:
14 W

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
13.4
Width:
16.2
Depth:
2.7
Height with Stand:
15.87
Width with Stand:
16.24
Depth with Stand:
8.06
Weight (Approximate):
7.50 lb
Weight with Stand (Approximate):
8.16 lb

Miscellaneous

Package Contents:
  • 19 Value Desktop Monitor with LED Backlighting
  • Setup Manual
  • Energy Star 8.0 Sheet
  • Contents Sheet
  • Power Cord (1.5m)
  • DisplayPort Cable (1.5m)
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,ENERGY STAR 8.0

Warranty

Limited Warranty:
3 Year
