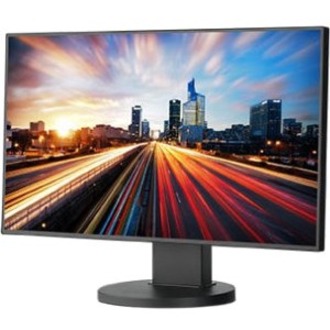

NEC Display MultiSync EX241UN-PT-H 23.8" LCD Touchscreen Monitor - 16:9 - 6 ms

  • SKU: NIN-5465|MFG PART: EX241UN-PT-H

$890.22

Projected CapacitiveMulti-touch Screen - 1920 x 1080 - Full HD - 16.7 Million Colors - 250 Nit - WLED Backlight - Speakers - DVI - HDMI - USB - VGA - DisplayPort - RoHS - 3 Year - Speaker
  • WLED backlighting technology enabled for a bright and sharp display
  • Enjoy crisp content and energetic hues with the 250 Nit brightness
View Product Overview

PRODUCT OVERVIEW

Projected CapacitiveMulti-touch Screen - 1920 x 1080 - Full HD - 16.7 Million Colors - 250 Nit - WLED Backlight - Speakers - DVI - HDMI - USB - VGA - DisplayPort - RoHS - 3 Year - Speaker
  • WLED backlighting technology enabled for a bright and sharp display
  • Enjoy crisp content and energetic hues with the 250 Nit brightness

additional information

Viewable Screen Size:
23.8
Screen Mode:
Full HD
Response Time:
6 ms
Aspect Ratio:
16:9
Backlight Technology:
WLED
Horizontal Frequency:
31.50 kHz to 83 kHz - Analog/Digital
Vertical Frequency:
56 Hz to 75 Hz
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Color Gamut:
72% NTSC,100% sRGB
Speakers:
Yes
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
DVI:
Yes
HDMI:
Yes
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Built-in Devices:
Speaker,USB Hub
Operating Power Consumption:
19 W
VESA Mount Compatible:
Yes
Height:
13
Width:
22.1
Depth:
2.1
Weight (Approximate):
7.85 lb
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Limited Warranty:
3 Year

Why this product?

Built on the foundations of the MultiSync EX241UN, the 10-point touch EX241UN-PT-H is an IPS desktop monitor designed for interaction. This widescreen model features a flat front display backed by a IPS panel technology with wide viewing angles (178° horizontal/vertical). It features a 5-way control button on the back with on-screen display (OSD) indicators for easy adjustment of key settings and the included ControlSync ™ technology allows users to control the settings for up to 25 EX241UN displays from one place, ideal for kiosks or other installed locations. Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor. Its comprehensive input panel includes HDMI, DisplayPort, DVI-D, VGA and 3-port USB 3.0 hub for connecting to the latest display sources.

  • 10-point Projected Capacitive (PCAP) touch with HID support for Windows, Google Chrome, MacOS and Linux
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • Full connectivity, including DisplayPort, HDMI, DVI-D and VGA inputs
  • 5-way control button with on screen display makes display adjustments simple
  • Optional human and ambient light sensors (KT-SS1) automatically detect your work conditions to determine the proper display brightness, conserving power
  • ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Sharp NEC Display Solutions Ltd.
Manufacturer Part Number:
EX241UN-PT-H
Manufacturer Website Address:
http://www.necdisplay.com
Brand Name:
NEC Display
Product Line:
MultiSync
Product Model:
EX241UN-PT-H
Product Name:
24 Full HD PCAP Touch Display with 100mm VESA Mount
Product Type:
LCD Touchscreen Monitor

Technical Information

Viewable Screen Size:
23.8
Screen Mode:
Full HD
Response Time:
6 ms
Aspect Ratio:
16:9
Backlight Technology:
WLED
Horizontal Frequency:
31.50 kHz to 83 kHz - Analog/Digital
Vertical Frequency:
56 Hz to 75 Hz

Video

Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Color Gamut:
72% NTSC,100% sRGB

Audio

Speakers:
Yes

Touchscreen Information

Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes

Interfaces/Ports

DVI:
Yes
HDMI:
Yes
USB:
Yes
VGA:
Yes
DisplayPort:
Yes

Built-in Devices

Built-in Devices:
Speaker,USB Hub

Power Description

Operating Power Consumption:
19 W

Physical Characteristics

VESA Mount Compatible:
Yes
Height:
13
Width:
22.1
Depth:
2.1
Weight (Approximate):
7.85 lb

Miscellaneous

Package Contents:
  • 24 Full HD PCAP Touch Display with 100mm VESA Mount
  • Setup Sheet
  • User Manual
  • Power Cord
  • DisplayPort Cable
  • USB Cable
  • ControlSync Cable
Environmentally Friendly:
Yes
Environmental Certification:
RoHS

Warranty

Limited Warranty:
3 Year
MANUALS AND INSTRUCTIONS
User-Manual

Manufacturer-Brochure
