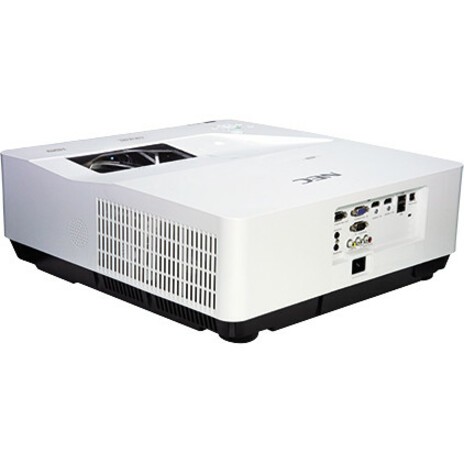

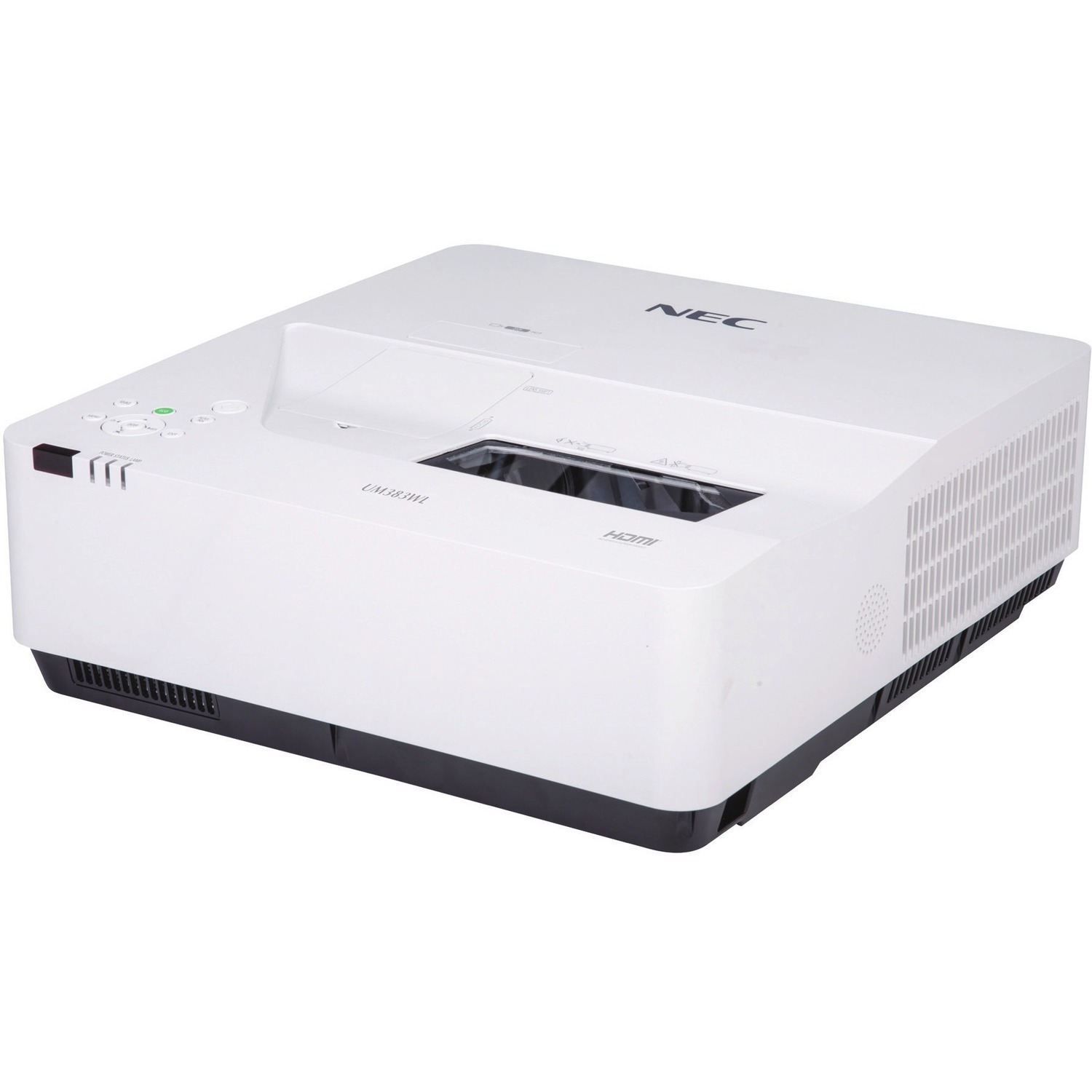

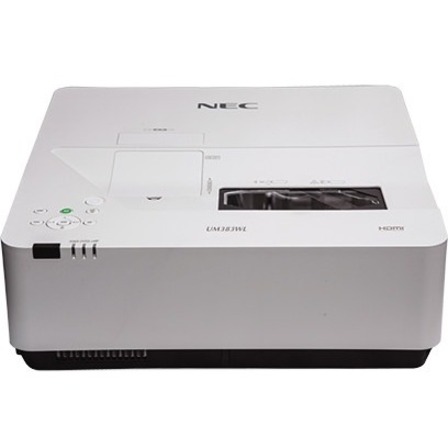

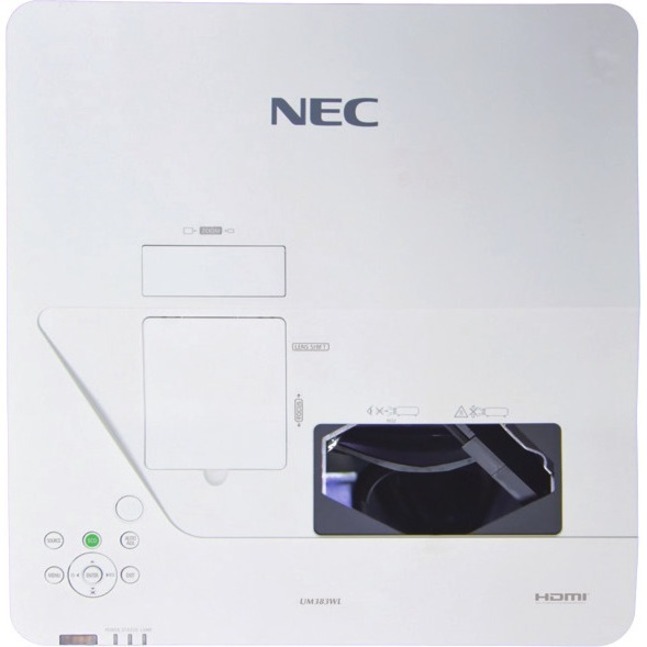

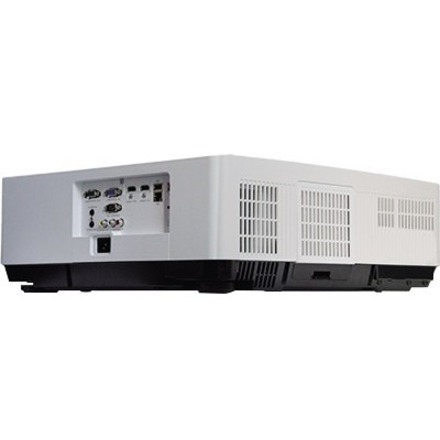

NEC Display NP-UM383WL-WK Ultra Short Throw LCD Projector - 16:10

  • SKU: NIN-5147|MFG PART: NP-UM383WL-WK

$1,851.55

1280 x 800 - Front, Rear, Ceiling - 20000 Hour Normal ModeWXGA - 3800 lm - HDMI - USB - 5 Year Warranty
  • These LCD projectors can be used in large rooms where a greater projection distance is needed
  • 3800 lm brightness helps you view sharp and lively visuals
  • Delivers high-quality widescreen performance in any settings with the WXGA graphic mode on
View Product Overview

PRODUCT OVERVIEW

1280 x 800 - Front, Rear, Ceiling - 20000 Hour Normal ModeWXGA - 3800 lm - HDMI - USB - 5 Year Warranty
  • These LCD projectors can be used in large rooms where a greater projection distance is needed
  • 3800 lm brightness helps you view sharp and lively visuals
  • Delivers high-quality widescreen performance in any settings with the WXGA graphic mode on

additional information

Projection Method:
Front,Rear,Ceiling
Throw Type:
Ultra Short Throw
Minimum Focal Length:
4.92 mm
Maximum Focal Length:
5.18 mm
Maximum Diagonal Image Size:
10.83 ft
Optical Zoom:
1.1x
Number of Lamps:
1
Lamp Type:
HLD LED
Normal Mode Lamp Life:
20000 Hour
Standard Mode Brightness:
3800 lm
Native Resolution:
1280 x 800
Graphic Mode:
WXGA
Maximum Resolution:
1920 x 1200
Native Aspect Ratio:
16:10
Video Signal Standard:
HDTV
HDMI:
Yes
USB:
Yes
Operating Power Consumption:
460 W
Height:
6.2
Width:
17.7
Depth:
16.7
Weight (Approximate):
23.60 lb
Limited Warranty:
5 Year

Why this product?

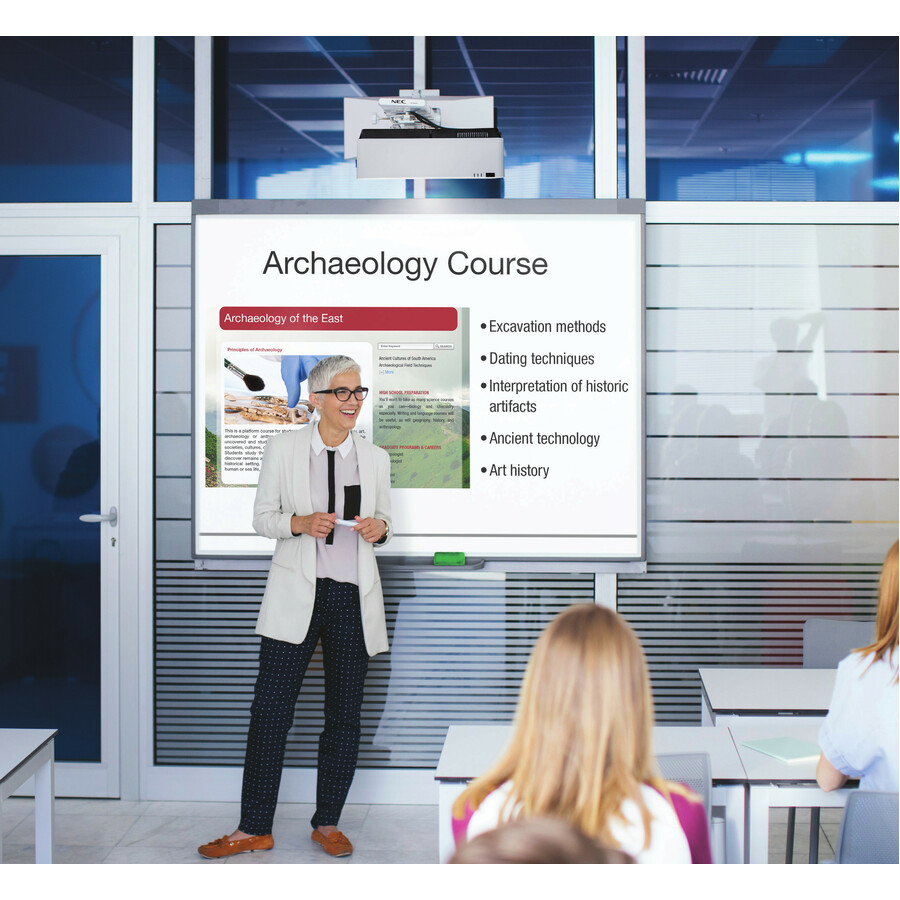

NEC's UM383WL ultra short throw HLD LED projector is a low maintenance display solution for education and corporate customers that need up to 130 diagonal video and images at an affordable cost. With its ability to be mounted to the wall directly above the screen on which it projects, this model helps eliminate the shadows and glare typically found with standard projection systems. The UM383WL includes LCD optics, a long lasting light source and full connectivity including RJ-45 for remote management over a network.

  • Ultra short throw lens (0.27:1 throw ratio) helps eliminate shadows on the screen along with projected light in the presenter's eyes created by traditional front projection systems
  • HLD LED light source eliminates the maintence requirements that exist in lamp based projectors

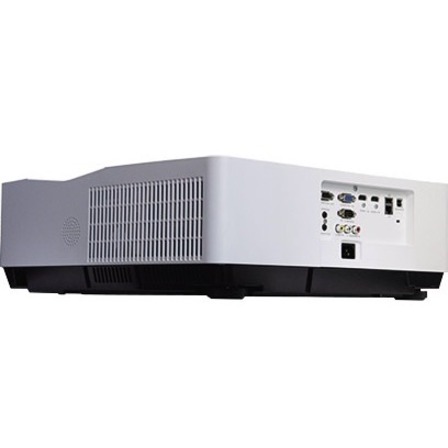

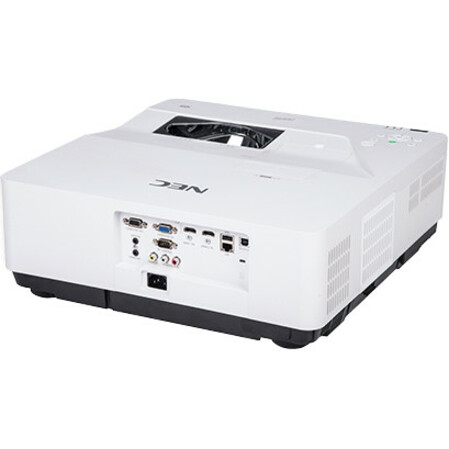

  • Comprehensive input/output panel, including dual HDMI, VGA and RJ-45 for networking
  • ECO Mode™ technology lowers power consumption
  • Horizontal & Vertical Keystone adjustment or Cornerstone Correction ensures the image will fill the screen every time
  • Remote monitoring and control of projector over network saves IT employee time and reduces costs related to projector operation
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of large installations
  • Industry leading 5 year standard warranty on parts and labor! This includes NEC's InstaCare advanced exchange program FREE!

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Sharp NEC Display Solutions Ltd.
Manufacturer Part Number:
NP-UM383WL-WK
Manufacturer Website Address:
http://www.necdisplay.com
Brand Name:
NEC Display
Product Model:
NP-UM383WL-WK
Product Name:
3,800 Lumen, WXGA, LCD, HLD LED Ultra Short Throw Projector w/ Wall Mount
Packaged Quantity:
1 Each
Product Type:
LCD Projector

Technical Information

Projection Method:
Front,Rear,Ceiling

Projection Lens

Throw Type:
Ultra Short Throw
Minimum Focal Length:
4.92 mm
Maximum Focal Length:
5.18 mm
Maximum Diagonal Image Size:
10.83 ft
Optical Zoom:
1.1x

Lamp

Number of Lamps:
1
Lamp Type:
HLD LED
Normal Mode Lamp Life:
20000 Hour


Standard Mode Brightness:
3800 lm
Native Resolution:
1280 x 800
Graphic Mode:
WXGA
Maximum Resolution:
1920 x 1200
Native Aspect Ratio:
16:10

Video

Video Signal Standard:
HDTV

Interfaces/Ports

HDMI:
Yes
USB:
Yes

Power Description

Operating Power Consumption:
460 W

Physical Characteristics

Height:
6.2
Width:
17.7
Depth:
16.7
Weight (Approximate):
23.60 lb

Miscellaneous

Package Contents:
  • 3,800 Lumen, WXGA, LCD, HLD LED Ultra Short Throw Projector w/ Wall Mount

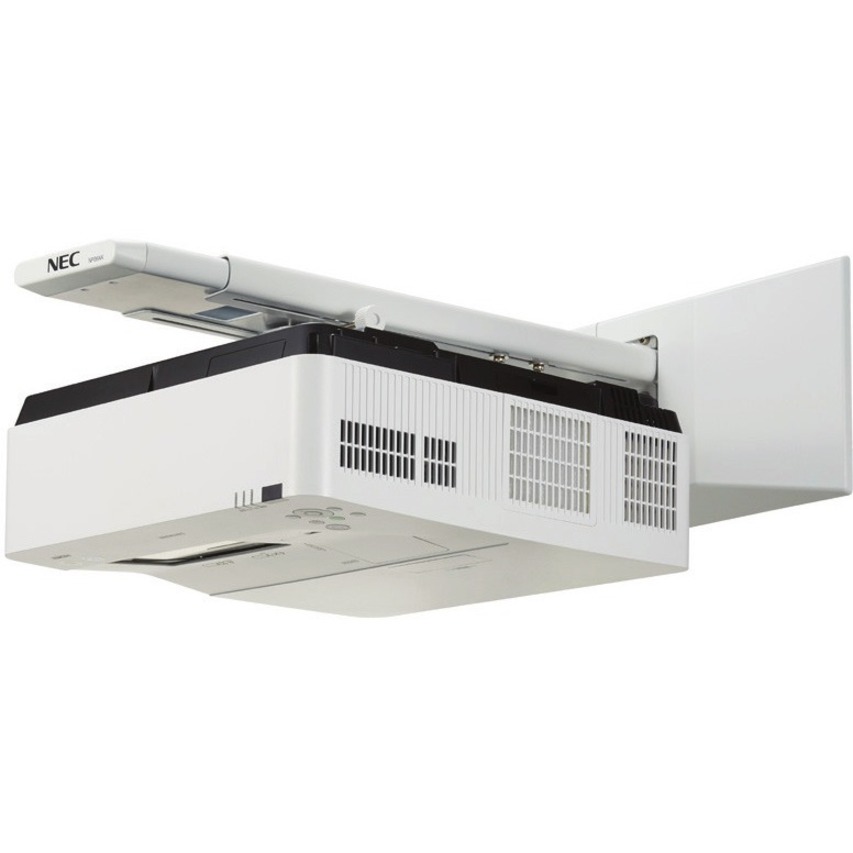

  • Wall Mount (NP06WK1)
  • Remote Control
  • Batteries
  • Power Cord
  • RGB Signal Cable
  • User Manual CD-ROM
  • Quick Start Guide
  • Important Info
  • Product Registration / Warranty Card
  • Security Stricker

Warranty

Limited Warranty:
5 Year
