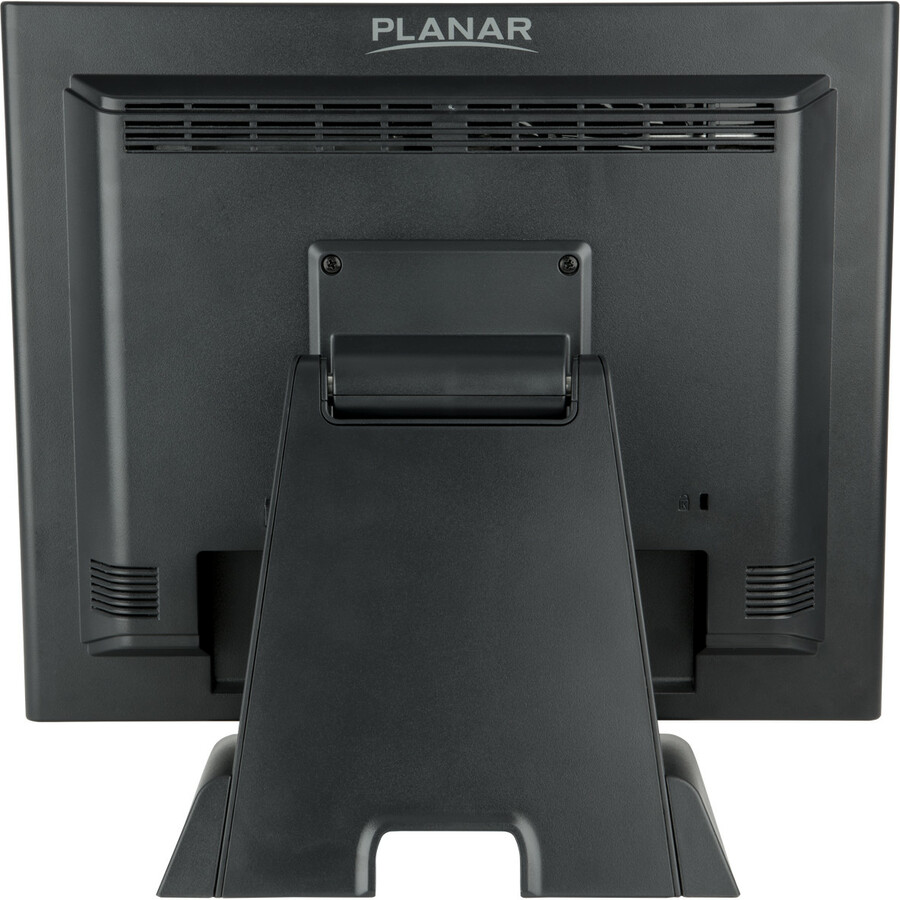

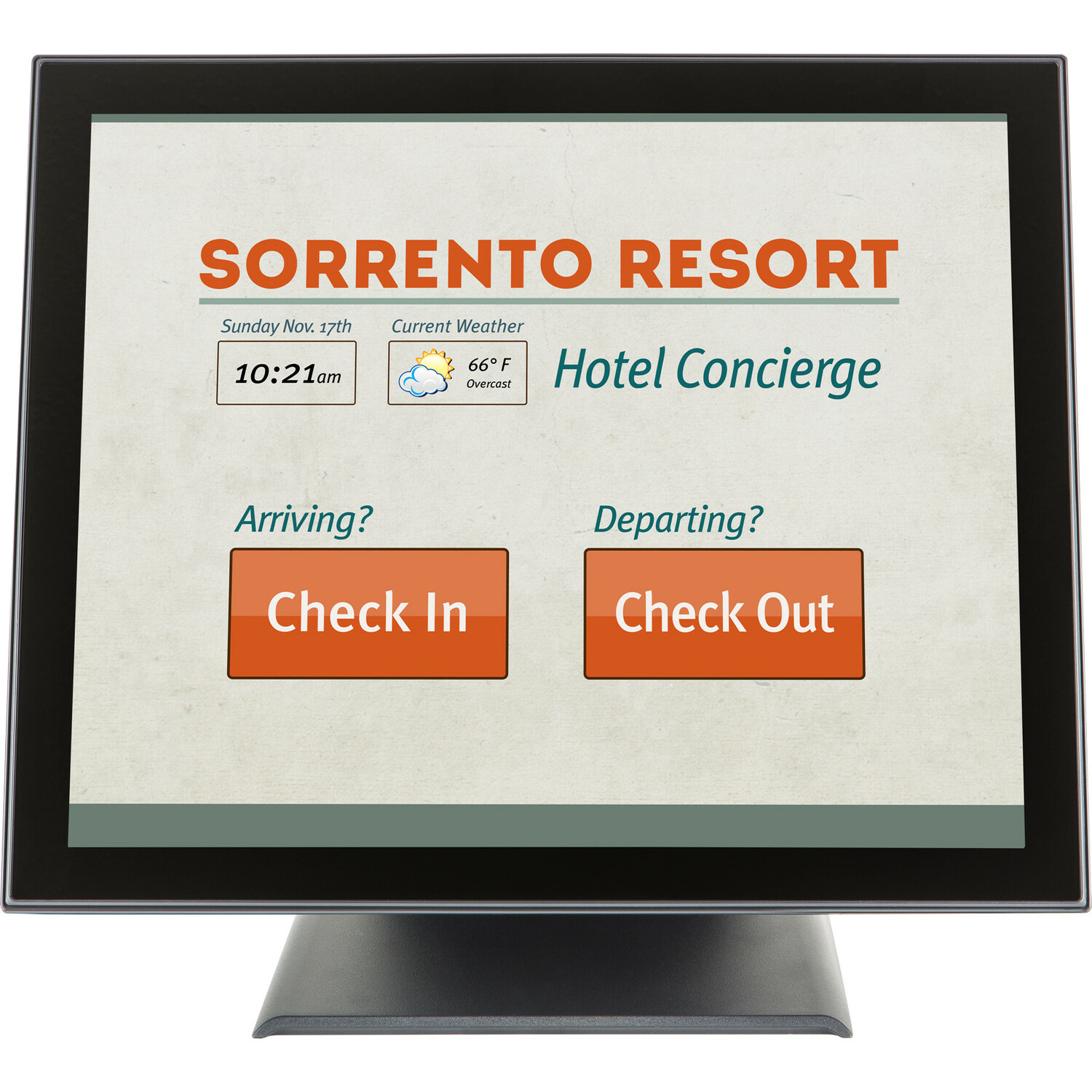

Planar PT1545P 15" LCD Touchscreen Monitor - 4:3 - 8 ms

  • SKU: PEX-1028|MFG PART: 997-7413-00

$398.99

15" Class - Projected CapacitiveMulti-touch Screen - 1024 x 768 - XGA-2 - Adjustable Display Angle - 16.7 Million Colors - 500:1 - 250 Nit - Edge LED Backlight - Speakers - USB - VGA - RoHS 2 - 3 Year
  • Edge LED backlighting technology enabled for a bright and sharp display
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 250 Nit brightness
View Product Overview

PRODUCT OVERVIEW

15" Class - Projected CapacitiveMulti-touch Screen - 1024 x 768 - XGA-2 - Adjustable Display Angle - 16.7 Million Colors - 500:1 - 250 Nit - Edge LED Backlight - Speakers - USB - VGA - RoHS 2 - 3 Year
  • Edge LED backlighting technology enabled for a bright and sharp display
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 250 Nit brightness

additional information

Screen Size Class:
15
Viewable Screen Size:
15
Screen Mode:
XGA-2
Response Time:
8 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
140°
Vertical Viewing Angle:
125°
Mount Type:
Wall Mountable,Arm-mountable
Backlight Technology:
Edge LED
Features:
Security Lock
Horizontal Frequency:
60 kHz
Maximum Resolution:
1024 x 768
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
250 Nit
Speakers:
Yes
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
USB:
Yes
VGA:
Yes
Operating Power Consumption:
25 W
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
10.9
Width:
13.8
Depth:
2.5
Height with Stand:
12.10
Width with Stand:
13.80
Depth with Stand:
8
Weight (Approximate):
6.40 lb
Weight with Stand (Approximate):
9.90 lb
Environmentally Friendly:
Yes
Environmental Certification:
RoHS 2
Limited Warranty:
3 Year

Why this product?

For image-conscious retail, hospitality or healthcare applications, the Planar® PT1545P 15 touch screen monitor is optimzed with multi-touch interactivity for space-constrained settings. With its ultra-thin profile enclosure and its sleek edge-to-edge glass surface, the Planar PT1545P provides the ultimate interactive experience.

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Leyard
Manufacturer Part Number:
997-7413-00
Manufacturer Website Address:
http://www.planar.com
Brand Name:
Planar
Product Model:
PT1545P
Product Name:
15 Touch Screen Monitor
Product Type:
LCD Touchscreen Monitor

Technical Information

Screen Size Class:
15
Viewable Screen Size:
15
Screen Mode:
XGA-2
Response Time:
8 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
140°
Vertical Viewing Angle:
125°
Adjustable Display Angle:
Yes
Mount Type:
Wall Mountable,Arm-mountable
Backlight Technology:
Edge LED
Tilt Angle:
-5°to90°
Features:
Security Lock
Horizontal Frequency:
60 kHz

Video

Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
250 Nit

Audio

Speakers:
Yes

Touchscreen Information

Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes

Interfaces/Ports

USB:
Yes
VGA:
Yes

Power Description

Input Voltage:
110 V AC,220 V AC
Operating Power Consumption:
25 W
Standby Power Consumption:
3 W
Off-Mode Power Consumption:
1 W

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
10.9
Width:
13.8
Depth:
2.5
Height with Stand:
12.10
Width with Stand:
13.80
Depth with Stand:
8
Weight (Approximate):
6.40 lb
Weight with Stand (Approximate):
9.90 lb

Miscellaneous

Package Contents:
  • 15 Touch Screen Monitor
  • Power Cord
  • VGA Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • User's Guide
  • Quick Start Guide
Certifications & Standards:
  • UL/c-UL
  • FCC-Class B
  • CE
Platform Supported:
PC,Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS 2

Warranty

Limited Warranty:
3 Year
