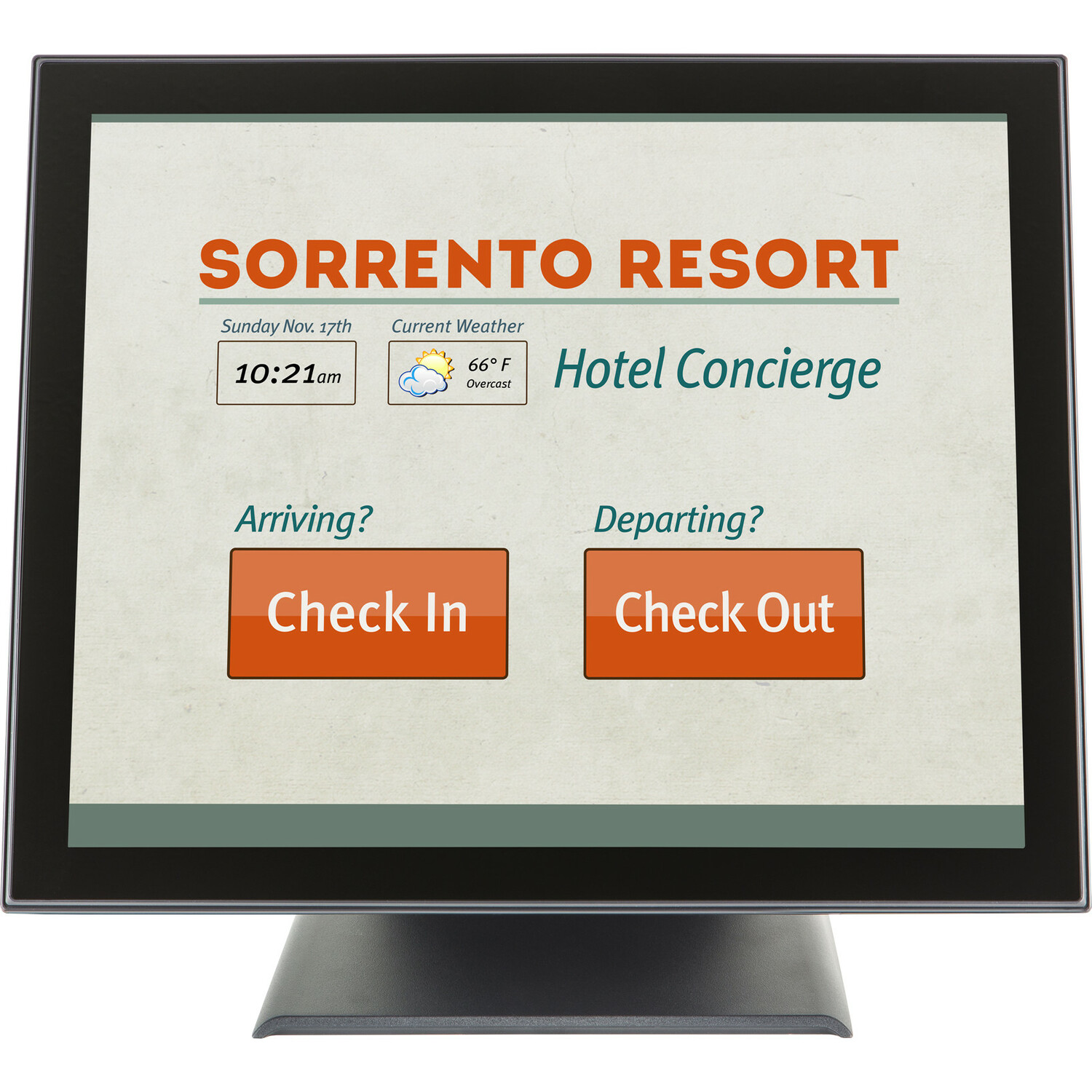

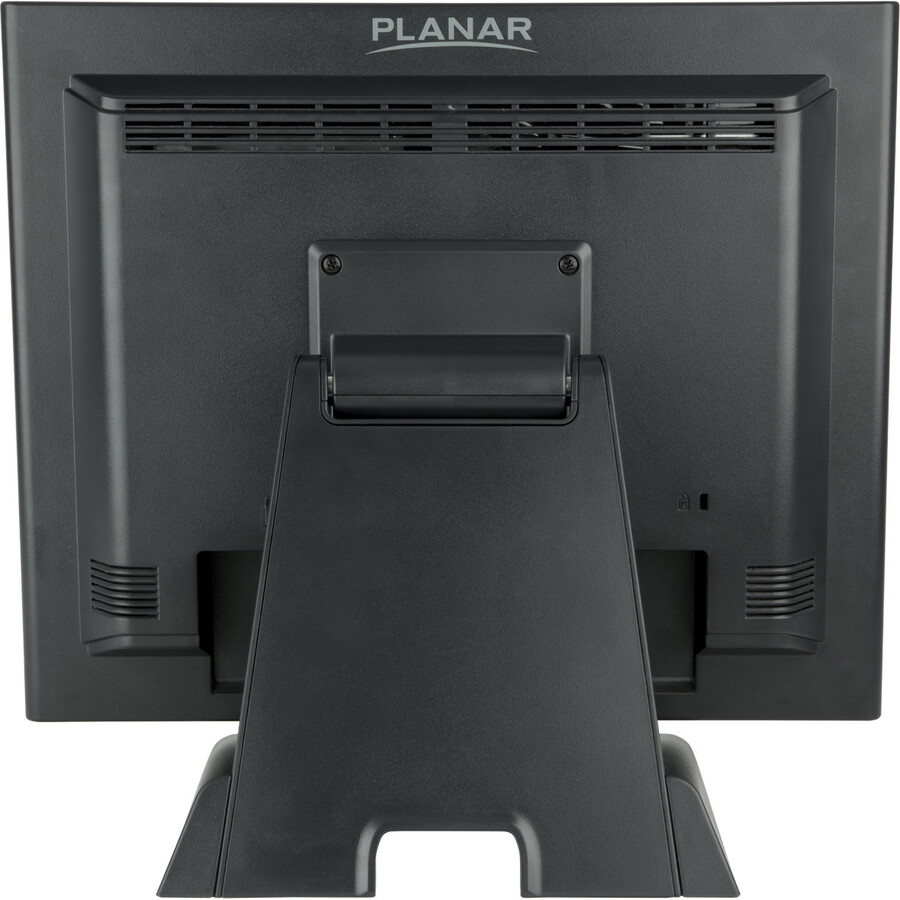

Planar PT1745P 17" LCD Touchscreen Monitor - 5:4 - 5 ms

  • SKU: PST-1025|MFG PART: 997-7414-00

$408.49

17" Class - Projected CapacitiveMulti-touch Screen - 1280 x 1024 - SXGA - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Edge LED Backlight - Speakers - USB - VGA - Black - RoHS 2 - 3 Year
  • Edge LED backlighting technology enabled for a bright and sharp display
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
View Product Overview

PRODUCT OVERVIEW

17" Class - Projected CapacitiveMulti-touch Screen - 1280 x 1024 - SXGA - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Edge LED Backlight - Speakers - USB - VGA - Black - RoHS 2 - 3 Year
  • Edge LED backlighting technology enabled for a bright and sharp display
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels

additional information

Screen Size Class:
17
Viewable Screen Size:
17
Screen Mode:
SXGA
Response Time:
5 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Mount Type:
Wall Mountable,Arm-mountable
Backlight Technology:
Edge LED
Features:
Security Lock
Horizontal Frequency:
80 kHz
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Speakers:
Yes
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
USB:
Yes
VGA:
Yes
Operating Power Consumption:
25 W
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
Black
Height:
12.6
Width:
15.2
Depth:
2.6
Height with Stand:
13.50
Width with Stand:
15.20
Depth with Stand:
8
Weight (Approximate):
8.80 lb
Weight with Stand (Approximate):
12.30 lb
Environmentally Friendly:
Yes
Environmental Certification:
RoHS 2
Limited Warranty:
3 Year

Why this product?

Designed to take advantage of the added multi-touch enabled features over traditional point-of-sale (POS) and kiosk applications, the Planar PT1745P registers up to 10 simultaneous touch points for fast and intuitive navigations through multiple screens. The ultra-thin profile design and edge-to-edge glass surface makes the Planar PT1745P an attractive addition to any hotel, retail or office setting and multi-touch features make it as intuitive to use as a tablet or a smart phone. The Planar PT1745P includes a full range desk stand that easily tilts from 0 to 90° with little pressure. It is a perfect pairing monitor for POS computer system, retail, concierge counters, check-in stations or gift registry kiosks.

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Leyard
Manufacturer Part Number:
997-7414-00
Manufacturer Website Address:
http://www.planar.com
Brand Name:
Planar
Product Model:
PT1745P
Product Name:
PT1745P 17 Touchscreen Edge-lit LED LCD Monitor
Product Type:
LCD Touchscreen Monitor

Technical Information

Screen Size Class:
17
Viewable Screen Size:
17
Screen Mode:
SXGA
Response Time:
5 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Mount Type:
Wall Mountable,Arm-mountable
Backlight Technology:
Edge LED
Tilt Angle:
-5°to90°
Features:
Security Lock
Horizontal Frequency:
80 kHz

Video

Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit

Audio

Speakers:
Yes

Touchscreen Information

Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes

Interfaces/Ports

USB:
Yes
VGA:
Yes

Power Description

Input Voltage:
110 V AC,220 V AC
Operating Power Consumption:
25 W
Standby Power Consumption:
3 W
Off-Mode Power Consumption:
1 W

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
Black
Height:
12.6
Width:
15.2
Depth:
2.6
Height with Stand:
13.50
Width with Stand:
15.20
Depth with Stand:
8
Weight (Approximate):
8.80 lb
Weight with Stand (Approximate):
12.30 lb

Miscellaneous

Package Contents:
  • PT1745P 17 Touchscreen Edge-lit LED LCD Monitor
  • Power Cord
  • VGA Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • User's Guide
  • Quick Start Guide
Certifications & Standards:
  • UL/c-UL
  • FCC-Class B
  • CE
Platform Supported:
PC,Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS 2

Warranty

Limited Warranty:
3 Year
