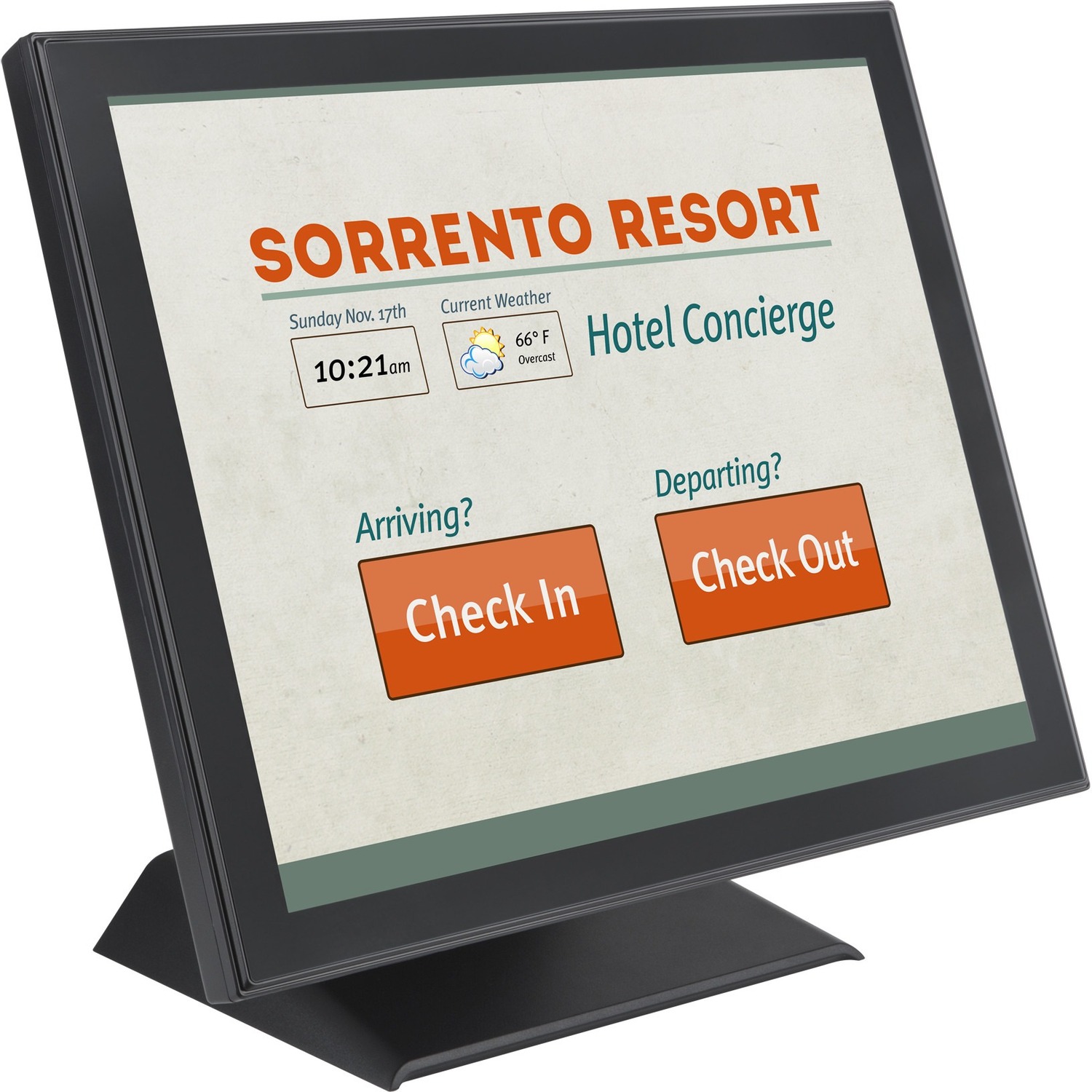

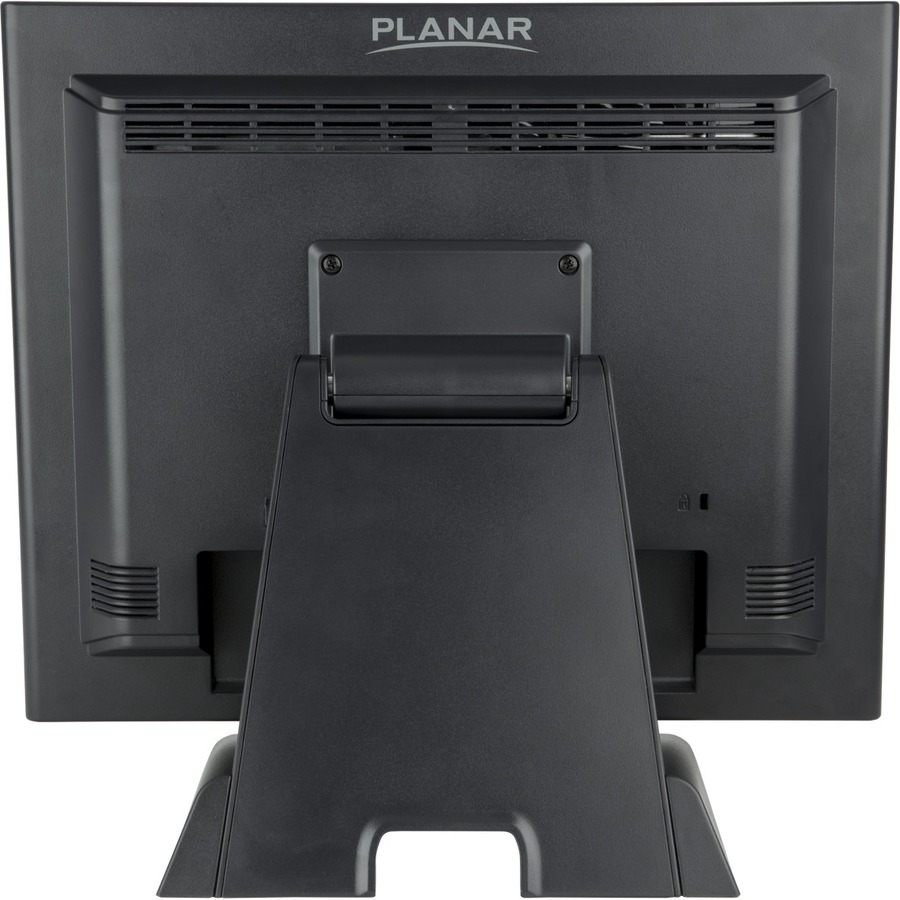

Planar PT1945P 19" LCD Touchscreen Monitor - 5:4 - 5 ms

  • SKU: PST-1023|MFG PART: 997-7415-00

$484.49

19" Class - Projected CapacitiveMulti-touch Screen - 1280 x 1024 - SXGA - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Edge LED Backlight - Speakers - USB - VGA - RoHS 2 - 3 Year
  • Edge LED backlighting technology enabled for a bright and sharp display
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
View Product Overview

PRODUCT OVERVIEW

19" Class - Projected CapacitiveMulti-touch Screen - 1280 x 1024 - SXGA - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Edge LED Backlight - Speakers - USB - VGA - RoHS 2 - 3 Year
  • Edge LED backlighting technology enabled for a bright and sharp display
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures

additional information

Screen Size Class:
19
Viewable Screen Size:
19
Screen Mode:
SXGA
Response Time:
5 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Mount Type:
Wall Mountable,Arm-mountable
Backlight Technology:
Edge LED
Features:
Security Lock
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Speakers:
Yes
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
USB:
Yes
VGA:
Yes
Built-in Devices:
Speaker
Operating Power Consumption:
17.60 W
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
15.4
Width:
17
Depth:
8.6
Weight (Approximate):
13.40 lb
Environmentally Friendly:
Yes
Environmental Certification:
RoHS 2
Limited Warranty:
3 Year

Why this product?

For image-conscious retail, hospitality or healthcare establishments, the Planar® PT1945P 19 monitor is optimized with multi-touch interactivity. With its ultra-thin profile enclosure to its sleek, edge-to-edge glass surface, the Planar PT1945P provides the ultimate end-user experience.

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Leyard
Manufacturer Part Number:
997-7415-00
Manufacturer Website Address:
http://www.planar.com
Brand Name:
Planar
Product Model:
PT1945P
Product Name:
PT1945P 19 Touchscreen LCD Monitor
Product Type:
LCD Touchscreen Monitor

Technical Information

Screen Size Class:
19
Viewable Screen Size:
19
Screen Mode:
SXGA
Response Time:
5 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Mount Type:
Wall Mountable,Arm-mountable
Backlight Technology:
Edge LED
Tilt Angle:
-5°to90°
Features:
Security Lock

Video

Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit

Audio

Speakers:
Yes

Touchscreen Information

Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes

Interfaces/Ports

USB:
Yes
VGA:
Yes

Built-in Devices

Built-in Devices:
Speaker

Power Description

Input Voltage:
120 V AC,230 V AC
Operating Power Consumption:
17.60 W
Standby Power Consumption:
1.40 W
Off-Mode Power Consumption:
800 mW

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
15.4
Width:
17
Depth:
8.6
Weight (Approximate):
13.40 lb

Miscellaneous

Package Contents:
  • PT1945P 19 Touchscreen LCD Monitor
  • Power Cord
  • VGA Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • User's Guide
  • Quick Start Guide
Certifications & Standards:
  • UL
  • c-UL
  • FCC-Class B
  • CE
Platform Supported:
PC,Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS 2

Warranty

Limited Warranty:
3 Year
