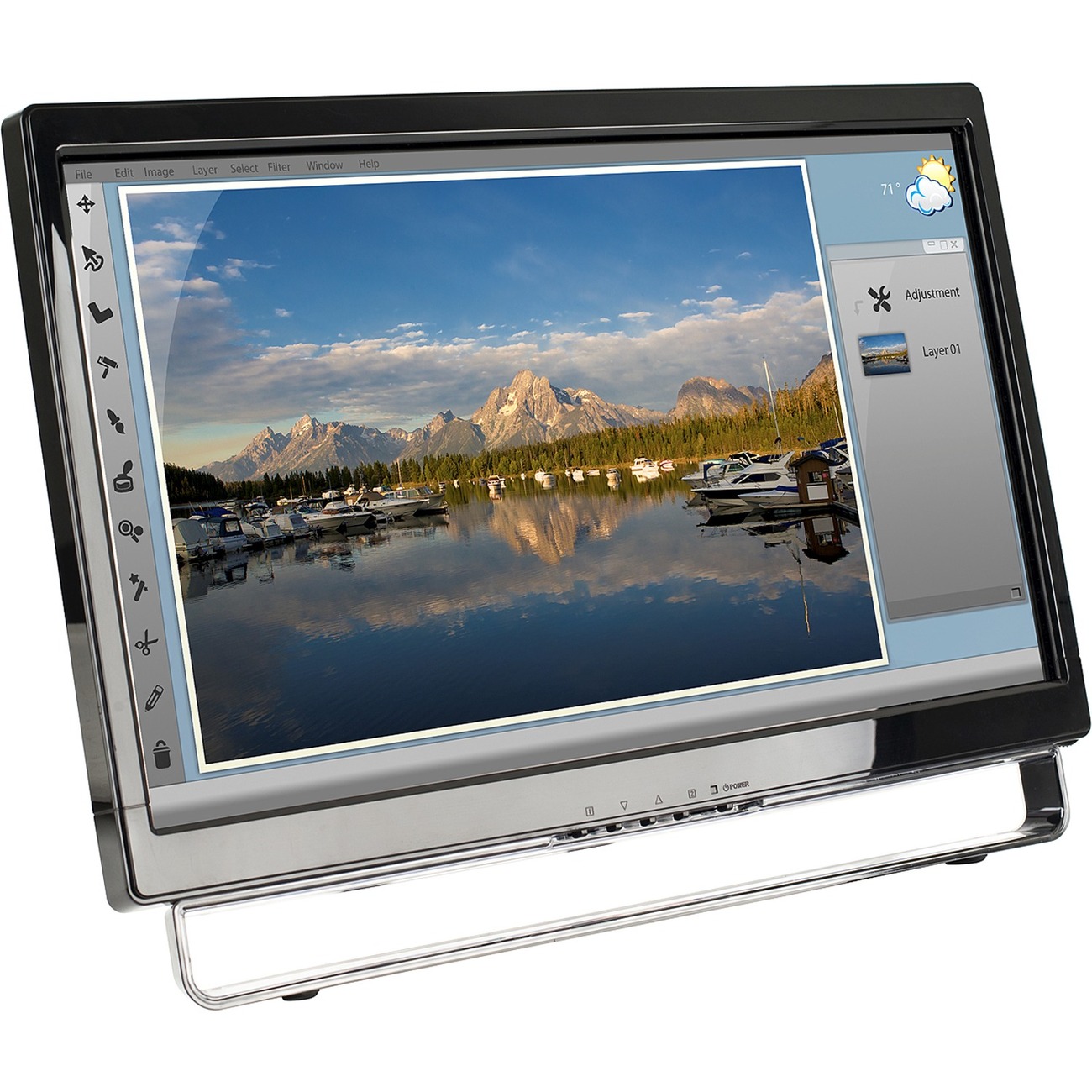

Planar PXL2230MW 22" LCD Touchscreen Monitor - 16:9 - 5 ms

  • SKU: PST-1022|MFG PART: 997-7039-00

$248.01

22" Class - OpticalMulti-touch Screen - 1920 x 1080 - Full HD - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Edge LED Backlight - Speakers - DVI - HDMI - USB - VGA - RoHS, WEEE - 3 Year
  • Edge LED backlighting technology enabled for a bright and sharp display
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
View Product Overview

PRODUCT OVERVIEW

22" Class - OpticalMulti-touch Screen - 1920 x 1080 - Full HD - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Edge LED Backlight - Speakers - DVI - HDMI - USB - VGA - RoHS, WEEE - 3 Year
  • Edge LED backlighting technology enabled for a bright and sharp display
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels

additional information

Screen Size Class:
22
Viewable Screen Size:
22
Screen Mode:
Full HD
Response Time:
5 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Backlight Technology:
Edge LED
HDCP Supported:
Yes
Features:
OSD/Power Lock
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Speakers:
Yes
Touchscreen Type:
Optical
Multi-touch Screen:
Yes
DVI:
Yes
HDMI:
Yes
USB:
Yes
VGA:
Yes
Built-in Devices:
Speaker
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
12.9
Width:
20.3
Depth:
2.8
Height with Stand:
14.70
Width with Stand:
20.30
Depth with Stand:
4.90
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE
Limited Warranty:
3 Year

Why this product?

The PXL2230MW 22 widescreen multi touch LCD monitor is optimized for consumer multimedia applications. Designed for only Microsoft Windows® 7, the monThe PXL2230MW 22 multi touch full HD widescreen edge-lit LED LCD is optimized for consumer multimedia applications. Designed for Microsoft Windows® 7, the monitor features an optical multi touch screen (USB interface). The PXL2230MW offers VGA, DVI-D and HDMI video inputs for flexible monitor setup and integrated speakers. The thin black bezel makes the PXL2230MW ideal for multiple monitor applications.

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Leyard
Manufacturer Part Number:
997-7039-00
Manufacturer Website Address:
http://www.planar.com
Brand Name:
Planar
Product Model:
PXL2230MW
Product Name:
PXL2230MW Touchscreen LCD Monitor
Product Type:
LCD Touchscreen Monitor

Technical Information

Screen Size Class:
22
Viewable Screen Size:
22
Screen Mode:
Full HD
Response Time:
5 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Backlight Technology:
Edge LED
HDCP Supported:
Yes
Features:
OSD/Power Lock

Video

Maximum Resolution:
1920 x 1080
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit

Audio

Speakers:
Yes

Touchscreen Information

Touchscreen:
Yes
Touchscreen Type:
Optical
Multi-touch Screen:
Yes

Interfaces/Ports

DVI:
Yes
HDMI:
Yes
USB:
Yes
VGA:
Yes

Built-in Devices

Built-in Devices:
Speaker

Power Description

Input Voltage:
110 V AC,220 V AC

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
12.9
Width:
20.3
Depth:
2.8
Height with Stand:
14.70
Width with Stand:
20.30
Depth with Stand:
4.90

Miscellaneous

Package Contents:
  • PXL2230MW Touchscreen LCD Monitor
  • Stylus
Certifications & Standards:
  • UL/cUL
  • FCC-B
  • CE
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE

Warranty

Limited Warranty:
3 Year
