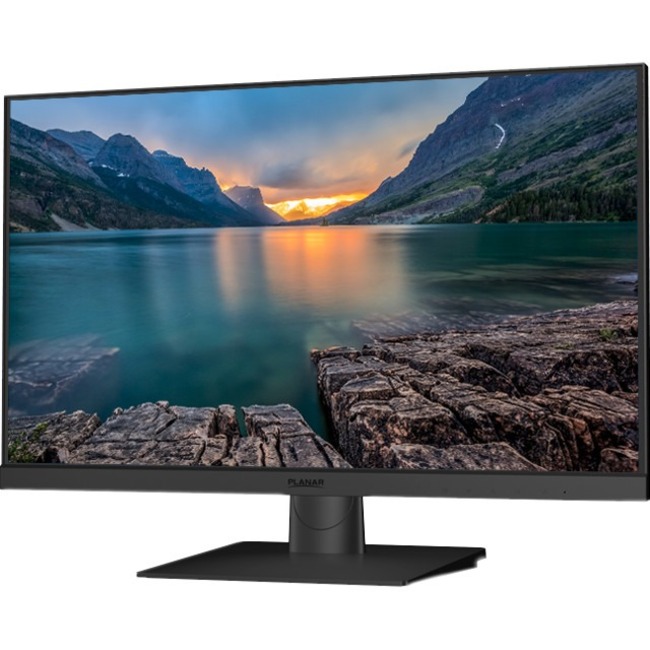

Planar PXN2490MW 23.8" QHD Edge LED LCD Monitor - 16:9

  • SKU: PST-1019|MFG PART: 998-0661-00

$227.24

2560 x 1440 - 16.7 Million Colors - 300 Nit Typical - 6 ms GTG - DVI - HDMI - VGA - DisplayPort - Speaker
  • External power supply
  • DisplayPort, HDMI, DVI inputs
  • Borderless design, slim depth
  • IPS edge-lit LED LCD
  • 24" LCD monitor with 2560 x 1440 resolution
View Product Overview

PRODUCT OVERVIEW

2560 x 1440 - 16.7 Million Colors - 300 Nit Typical - 6 ms GTG - DVI - HDMI - VGA - DisplayPort - Speaker
  • External power supply
  • DisplayPort, HDMI, DVI inputs
  • Borderless design, slim depth
  • IPS edge-lit LED LCD
  • 24" LCD monitor with 2560 x 1440 resolution

additional information

Number of Screens:
1
Viewable Screen Size:
23.8
Screen Mode:
QHD
Response Time:
6 ms GTG
Aspect Ratio:
16:9
Pixel Pitch:
8.1 mil
Backlight Technology:
Edge LED
Vertical Frequency:
48 Hz to 76 Hz
Maximum Resolution:
2560 x 1440
Color Supported:
16.7 Million Colors
Brightness:
300 Nit - Typical
Speakers:
Yes
DVI:
Yes
HDMI:
Yes
VGA:
Yes
DisplayPort:
Yes
Built-in Devices:
Speaker
Operating Power Consumption:
22 W
VESA Mount Compatible:
Yes
Height:
12.8
Width:
21.3
Depth:
1.5
Height with Stand:
15.20
Width with Stand:
21.30
Depth with Stand:
7.90
Weight (Approximate):
7.10 lb
Weight with Stand (Approximate):
8 lb
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Limited Warranty:
3 Year

Why this product?

The Planar® PXN2490MW is a QHD 24 desktop monitor that features IPS LED backlight technology, a nearly borderless design, wide viewing angles, external power supply, speakers and inputs for DisplayPort, HDMI and DVI. The Planar PXN2490MW fits seamlessly into home, office, healthcare and digital signage environments.

Planar PXN2490MW

The PXN2490MW is a modern and stylish 24 QHD (2560 x 1440) widescreen desktop monitor. This slim, space-saving monitor features a nearly borderless bezel design and utilizes IPS technology to deliver 178°/178° viewing with no color shift. It is flicker-free and incorporates blue light reduction presets to help lower eye fatigue and maintain visual comfort. DisplayPort, HDMI and DVI inputs provide flexible compatibility. LED backlight technology reduces energy consumption and total-cost-of-ownership while providing superb image quality.

Featuring IPS technology, integrated TrueMedia™ speakers, an external power supply and 100mm VESA compatibility for easy wall or arm mounting, the Planar PXN2490MW pairs well with Planar's accessories, including the Universal Height Adjust Stand, the Dual Arm Desk stand, and the Planar Dual Monitor Stand.

Industry-Leading Warranty

The Planar PXN2490MW includes Planar's leading Planar® CustomerFirst™ 3-Year Warranty featuring FREE 2-Day Advance Replacement.

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Leyard
Manufacturer Part Number:
998-0661-00
Manufacturer Website Address:
http://www.planar.com
Brand Name:
Planar
Product Model:
PXN2490MW
Product Name:
PXN2490MW 24 LCD Monitor
Product Type:
LCD Monitor

Technical Information

Number of Screens:
1
Viewable Screen Size:
23.8
Screen Mode:
QHD
Response Time:
6 ms GTG
Aspect Ratio:
16:9
Pixel Pitch:
8.1 mil
Backlight Technology:
Edge LED
Vertical Frequency:
48 Hz to 76 Hz

Video

Maximum Resolution:
2560 x 1440
Color Supported:
16.7 Million Colors
Brightness:
300 Nit - Typical

Audio

Speakers:
Yes

Interfaces/Ports

DVI:
Yes
HDMI:
Yes
VGA:
Yes
DisplayPort:
Yes

Built-in Devices

Built-in Devices:
Speaker

Power Description

Operating Power Consumption:
22 W

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
12.8
Width:
21.3
Depth:
1.5
Height with Stand:
15.20
Width with Stand:
21.30
Depth with Stand:
7.90
Weight (Approximate):
7.10 lb
Weight with Stand (Approximate):
8 lb

Miscellaneous

Package Contents:
  • PXN2490MW 24 LCD Monitor
  • 12V DC AC Adapter
  • Power Cord
  • DisplayPort Cable
  • HDMI Cable
  • User's Guide
Environmentally Friendly:
Yes
Environmental Certification:
RoHS

Warranty

Limited Warranty:
3 Year
