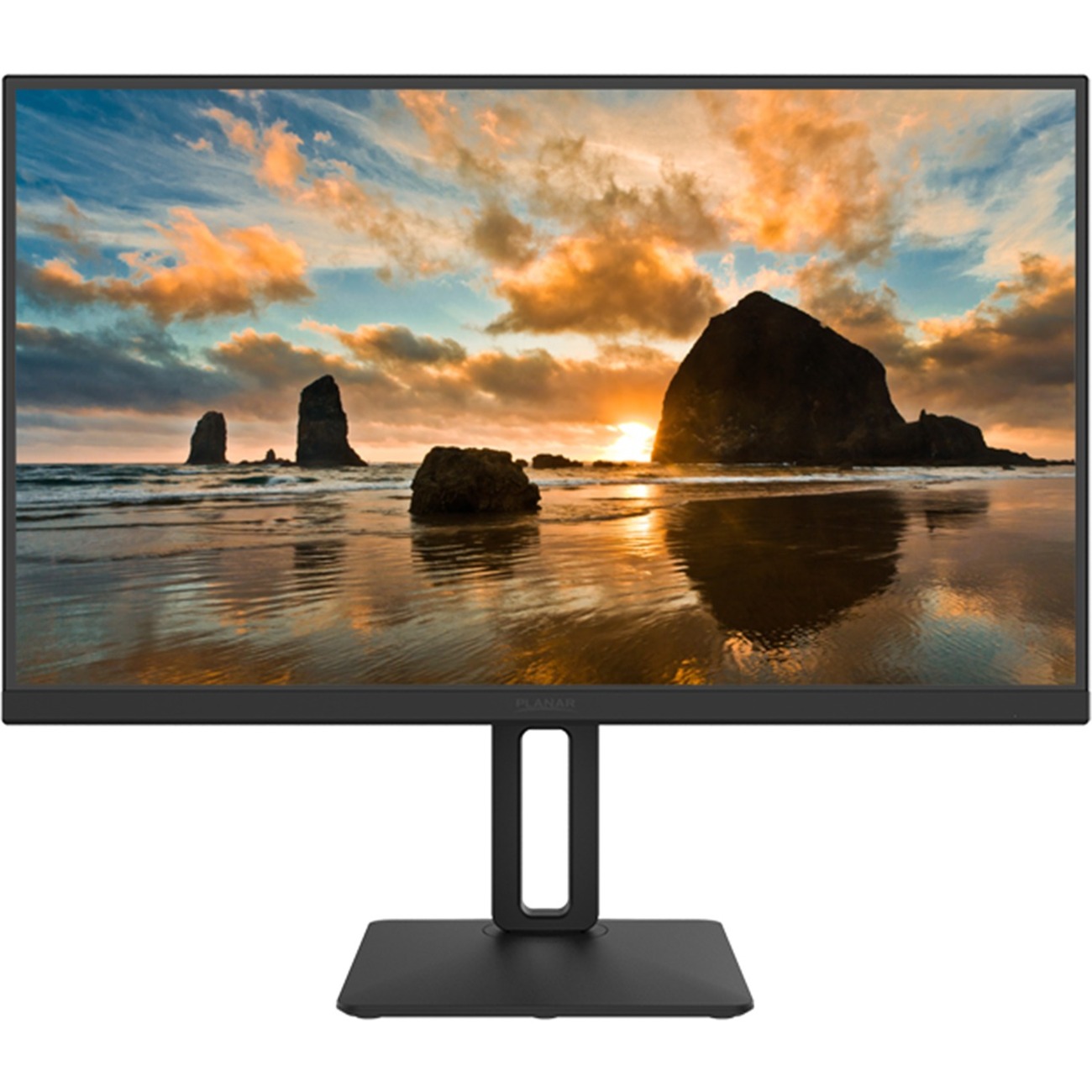

Planar PZN2710Q 27" WQHD LED LCD Monitor - 16:9

  • SKU: PST-1016|MFG PART: 998-2124-00

$373.34

27" Class - In-plane Switching (IPS) Technology - 2560 x 1440 - 16.7 Million Colors - 300 Nit Typical - 6 ms GTG - 75 Hz Refresh Rate - HDMI - DisplayPort - USB Hub
  • 27" IPS monitor with 2560 x 1440 QHD resolution
  • Built-in Docking Station
  • USB Type C, DisplayPort, HDMI inputs
  • USB 3.2 Gen 1 hub (3 downports)
  • Gigatbit Ethernet LAN
View Product Overview

PRODUCT OVERVIEW

27" Class - In-plane Switching (IPS) Technology - 2560 x 1440 - 16.7 Million Colors - 300 Nit Typical - 6 ms GTG - 75 Hz Refresh Rate - HDMI - DisplayPort - USB Hub
  • 27" IPS monitor with 2560 x 1440 QHD resolution
  • Built-in Docking Station
  • USB Type C, DisplayPort, HDMI inputs
  • USB 3.2 Gen 1 hub (3 downports)
  • Gigatbit Ethernet LAN

additional information

Number of Screens:
1
Screen Size Class:
27
Viewable Screen Size:
27
Screen Mode:
WQHD
Panel Technology:
In-plane Switching (IPS) Technology
Response Time:
6 ms GTG
Aspect Ratio:
16:9
Pixel Pitch:
9.2 mil
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
Desk Mountable,Wall Mountable,Arm-mountable
Backlight Technology:
LED
HDCP Supported:
Yes
Features:
Wide Viewing Angle,Anti-glare,On-screen Display (OSD),Cable Lock Slot,Low Blue Light,Flicker-free
Vertical Frequency:
48 Hz to 75 Hz
Stand Adjustments:
Height,Pivot,Swivel,Tilt
Adjustable Stand Height:
Yes
Maximum Resolution:
2560 x 1440
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
300 Nit - Typical
Number of Speakers:
2
Speakers:
Yes
Network (RJ-45):
Yes
HDMI:
Yes
USB:
Yes
DisplayPort:
Yes
USB Type-C:
Yes
Number of USB Ports:
4
Number of USB 3.2 Downstream Ports:
3
Number of USB Type-C Ports:
1
Built-in Devices:
USB Hub
Operating Power Consumption:
35 W
VESA Mount Compatible:
Yes
Height:
20.5
Width:
24.2
Depth:
2.1
Height with Stand:
20.50
Width with Stand:
24.20
Depth with Stand:
9.10
Weight (Approximate):
13.60 lb
Weight with Stand (Approximate):
16.50 lb
Environmentally Friendly:
Yes
Environmental Certification:
cTUVus,RoHS 2
Limited Warranty:
3 Year

Why this product?

The Planar® PZN2710Q is a 27 Quad HD USB Type - C Docking monitor. The integrated docking station provides a simple and easy way to connect a PC/laptop to the monitor. The monitor enables a single USB Type C cable to deliver audio, video, data, network connectivity, daisy chain, and power delivery up to 65 watts. The Planar PZN2710Q suits nicely into education, home, office or healthcare applications.

Planar PZN2710Q

The Planar® PZN2710Q is a QHD docking monitor designed to declutter workspaces and save precious desktop space with all connections though one simple USB-C cable. The IPS panel provides excellent viewing angles with minor color shift. IPS technology coupled with a frameless bezel design helps you focus on the content and maximize entirety of the screen.

With triple inputs-USB Type C, DisplayPort, HDMI-integrated TrueMedia™ speakers, and an ergonomic stand that offers height adjustment, pivot, swivel and tilt, the Planar® PZN2710Q is well suited for home or office applications.

It features an integrated gigabit Ethernet port which provides reliable network connectivity, while the daisy-chain feature makes connecting to another monitor simple. Planar recommends using the Planar PXN2710Q as a secondary monitor for a consistent and economical setup.

Users can leave their laptop power adapters at home or the office as the USB Type C provides power delivery up to 65 watts.

Planar PZN2710Q has a flicker free design and blue light reduction pre-sets to help lower eye fatigue and maintain visual comfort. The LED backlight reduces energy consumption without sacrificing image quality.

With frameless bezels and 100mm VESA compatibility for easy wall or arm mounting, the Planar PZN2710Q pairs well with Planar accessories, including the Large Dual Monitor Stand, Large Quad Monitor Stand, and Dual Arm Desk Stand.

Industry-Leading Warranty

The Planar® PXN22710Q includes the Planar® CustomerFirst™ 3-Year Warranty featuring no-cost 2-Day Advance Replacement.

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Leyard
Manufacturer Part Number:
998-2124-00
Manufacturer Website Address:
http://www.planar.com
Brand Name:
Planar
Product Model:
PZN2710Q
Product Name:
PZN2710Q Widescreen LCD Monitor
Product Type:
LCD Monitor

Technical Information

Number of Screens:
1
Screen Size Class:
27
Viewable Screen Size:
27
Screen Mode:
WQHD
Panel Technology:
In-plane Switching (IPS) Technology
Response Time:
6 ms GTG
Aspect Ratio:
16:9
Pixel Pitch:
9.2 mil
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
Desk Mountable,Wall Mountable,Arm-mountable
Backlight Technology:
LED
HDCP Supported:
Yes
Features:
Wide Viewing Angle,Anti-glare,On-screen Display (OSD),Cable Lock Slot,Low Blue Light,Flicker-free
Vertical Frequency:
48 Hz to 75 Hz
Stand Adjustments:
Height,Pivot,Swivel,Tilt
Adjustable Stand Height:
Yes

Video

Maximum Resolution:
2560 x 1440
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
300 Nit - Typical

Audio

Number of Speakers:
2
Speakers:
Yes

Interfaces/Ports

Network (RJ-45):
Yes
HDMI:
Yes
USB:
Yes
DisplayPort:
Yes
USB Type-C:
Yes
Number of USB Ports:
4
Number of USB 3.2 Downstream Ports:
3
Number of USB Type-C Ports:
1

Built-in Devices

Built-in Devices:
USB Hub

Power Description

Operating Power Consumption:
35 W

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
20.5
Width:
24.2
Depth:
2.1
Height with Stand:
20.50
Width with Stand:
24.20
Depth with Stand:
9.10
Weight (Approximate):
13.60 lb
Weight with Stand (Approximate):
16.50 lb

Miscellaneous

Package Contents:
  • PZN2710Q Widescreen LCD Monitor
  • Power Cord
  • DP Cable
  • USB Type-C Cable
  • User's Guide
Environmentally Friendly:
Yes
Environmental Certification:
cTUVus,RoHS 2

Warranty

Limited Warranty:
3 Year
