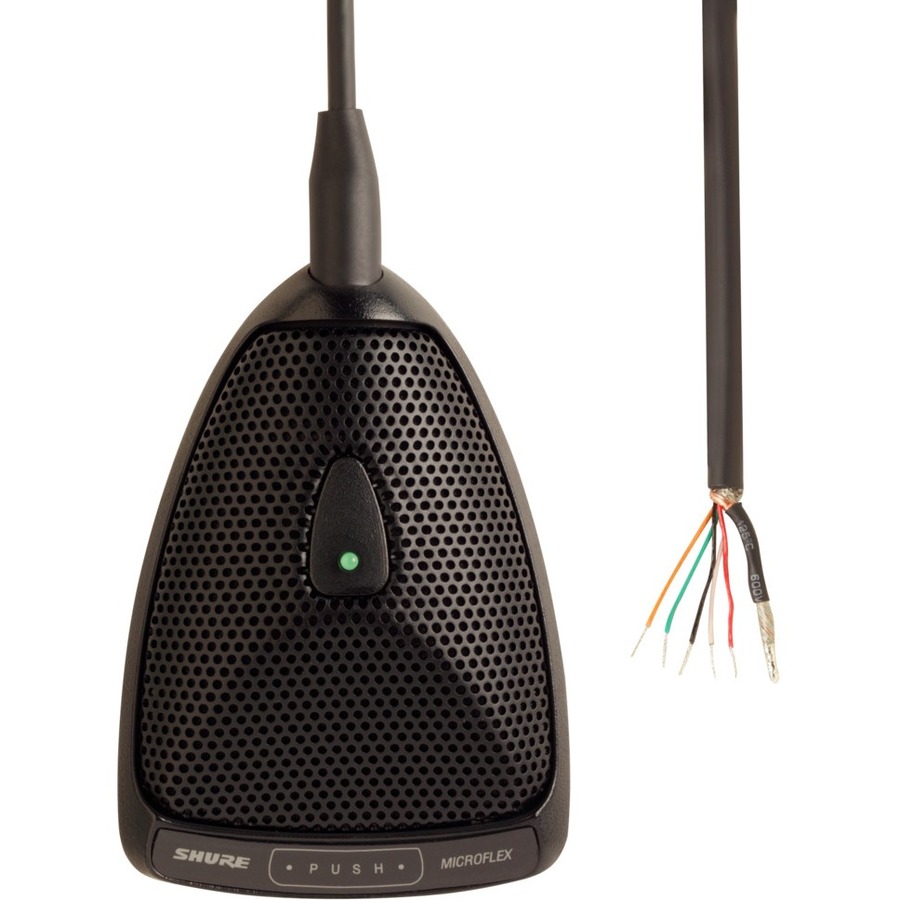

Shure Microflex MX392/O Wired Electret Condenser, Boundary Microphone

  • SKU: SSH-2109|MFG PART: MX392/O

$229.90

12.14 ft - 50 Hz to 17 kHz - Cardioid, Omni-directional - Surface Mount - Screw Terminal
  • LED indicator
  • Programmable, silent membrane switch
  • TTL Logic LED input and TTL Logic switch ouput
  • Cardioid, supercardioid and omnidirectional polar patterns
View Product Overview

PRODUCT OVERVIEW

12.14 ft - 50 Hz to 17 kHz - Cardioid, Omni-directional - Surface Mount - Screw Terminal
  • LED indicator
  • Programmable, silent membrane switch
  • TTL Logic LED input and TTL Logic switch ouput
  • Cardioid, supercardioid and omnidirectional polar patterns

additional information

Connectivity Technology:
Wired
Cable Length:
12.14 ft
Minimum Frequency Response:
50 Hz
Maximum Frequency Response:
17 kHz
Microphone Technology:
Electret Condenser,Boundary
Polar Pattern:
Cardioid,Omni-directional
Microphone Type:
Surface Mount
Host Interface:
Screw Terminal
Height:
0.8
Width:
3
Depth:
4.3

Why this product?

Boundary microphone provides high-quality sound for a wide range of applications due to its interchangeable condenser cartridge. It features programmable, silent membrane switches, LED indicators, and a low-profile design.

There's never been smarter boundary microphones than the Microflex models from Shure. With many models to choose from, equipped with features like programmable, silent membrane switches, logic inputs and outputs, and LED indicators, Microflex Boundary microphones are the high-quality solution for a range of applications, such as altars, boardrooms and distance learning centers.

Every Microflex Boundary microphone features one of the new interchangeable condenser cartridges. Available in cardioid, supercardioid and omnidirectional polar patterns, the Microflex cartridges give you superior Shure quality sound options for every installation. In addition, their programmable switches offer the flexibility to be set for Push to Talk, Push to Mute or Push On/Push Off modes. Attractively designed with a low profile, professional appearance, the Microflex Boundary microphones come with an easy to use paint mask for your custom-color installations.

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Shure, Inc
Manufacturer Part Number:
MX392/O
Manufacturer Website Address:
http://www.shure.com
Brand Name:
Shure
Product Line:
Microflex
Product Series:
MX392
Product Model:
MX392/O
Product Name:
MX392 Microflex Boundary
Product Type:
Microphone

Technical Information

Connectivity Technology:
Wired
Cable Length:
12.14 ft
Minimum Frequency Response:
50 Hz
Maximum Frequency Response:
17 kHz

Microphone

Microphone Technology:
Electret Condenser,Boundary
Polar Pattern:
Cardioid,Omni-directional
Microphone Type:
Surface Mount

Interfaces/Ports

Host Interface:
Screw Terminal

Physical Characteristics

Height:
0.8
Width:
3
Depth:
4.3

Miscellaneous

Package Contents:
  • MX392 Microflex Boundary
  • Zipper Bag
  • Switch Paint Mask (MX392/MX393)
  • Paint Mask (MX392/MX393)
  • Paint Plug (MX392/MX393)
