Vaddio DocCAM Video Conferencing Camera - 2.1 Megapixel - 60 fps - HDMI

  • SKU: VSY-2010|MFG PART: 999-9968-200

$4,456.26

2.4 Megapixel Interpolated - 1920 x 1080 Video - Exmor CMOS Sensor - Auto/Manual - Network (RJ-45)
  • Simultaneous HDMI and IP Streaming outputs
  • Power, control, and video up to 328ft (100m) over a single Cat-5e/6 cable
  • Simple, clutter-free camera extension with HDBaseT technology
View Product Overview

PRODUCT OVERVIEW

2.4 Megapixel Interpolated - 1920 x 1080 Video - Exmor CMOS Sensor - Auto/Manual - Network (RJ-45)
  • Simultaneous HDMI and IP Streaming outputs
  • Power, control, and video up to 328ft (100m) over a single Cat-5e/6 cable
  • Simple, clutter-free camera extension with HDBaseT technology

additional information

Effective Resolution:
2.1 Megapixel
Interpolated Resolution:
2.4 Megapixel
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Image Sensor Type:
Exmor CMOS
Focus Modes:
Auto/Manual
Host Interface:
HDMI
Network (RJ-45):
Yes
Weight (Approximate):
5.05 lb

Why this product?

Don't disrupt the moment - enhance it with the ceiling mounted, HD quality document camera. Experience seamless video, remote management, and flexible installation with the Vaddio DocCAM 20 HDBT.

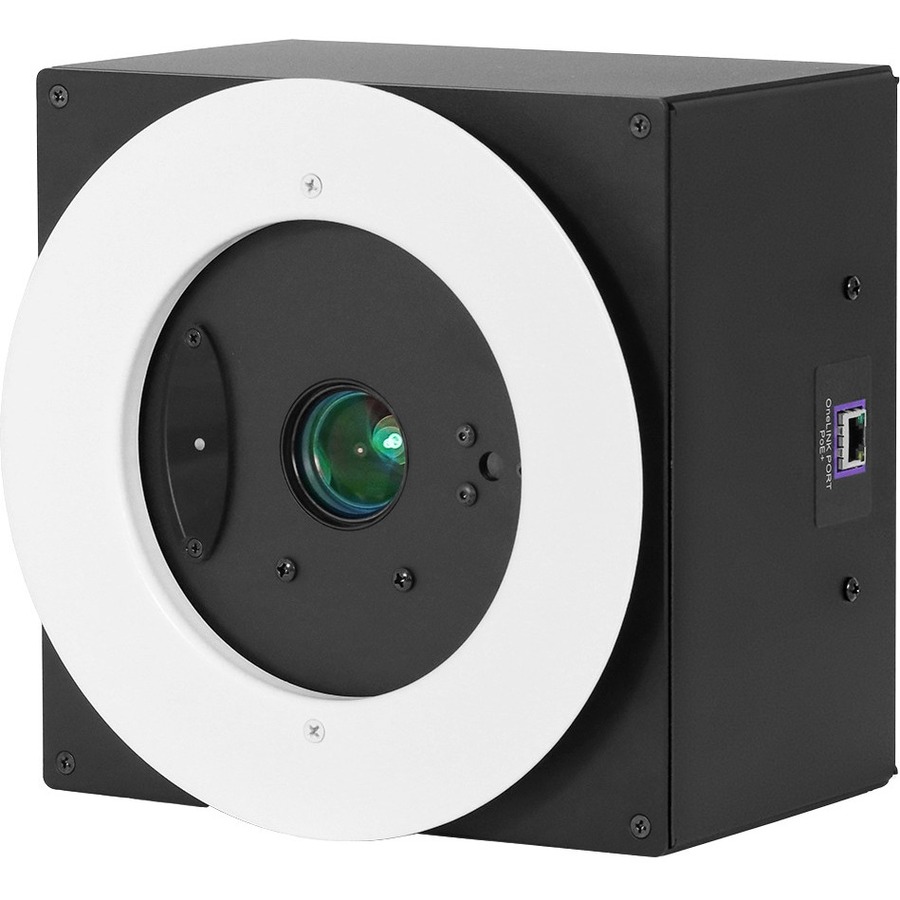

The DocCAM 20 HDBT is a high definition, recessed in-ceiling document camera.

Engage the audience like never before with 20x optical zoom and high-definition 1080p/60fps resolution. Capture more of the table with nearly 60° horizontal field of view.

The DocCAM 20 HDBT has an in-ceiling, recessed design allowing it to blend into nearly any environment. Equipped with our popular OneLINK HDBaseT port, the DocCAM 20 HDBT easily connects to the Vaddio OneLINK HDMI extension system to reduce cabling and extend video, power, and control up to an installation distance of 328 ft (100M).

Remote network management of the DocCAM 20 HDBT allows the presenter to transmit a live image and control all the functions remotely making it an effective and efficient distance learning tool.

Common design applications include:

  • Higher education classrooms
  • Medical schools and operating theaters
  • Technical training sessions
  • Video conference rooms
  • City council chambers
  • Courtrooms and evidence viewing
  • Art schools - Illustrative demonstrations
  • Culinary schools - cooking demos
  • Construction and architectural firms - reviewing plans

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Vaddio
Manufacturer Part Number:
999-9968-200
Manufacturer Website Address:
http://www.vaddio.com
Brand Name:
Vaddio
Product Line:
DocCAM
Product Name:
DocCAM Video Conferencing Camera
Product Type:
Video Conferencing Camera

Display & Graphics

Effective Resolution:
2.1 Megapixel
Interpolated Resolution:
2.4 Megapixel
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Image Sensor Type:
Exmor CMOS

Lens

Focus Modes:
Auto/Manual

Interfaces/Ports

Host Interface:
HDMI
Network (RJ-45):
Yes

Physical Characteristics

Weight (Approximate):
5.05 lb

Miscellaneous

Package Contents:
  • DocCAM Video Conferencing Camera
  • White Trim Ring
  • 2 x Mounting Screws
  • Tile Support Brace
  • Vaddio IR Remote Commander for DocCAM 20 HDBT
  • OneLINK HDMI Interface
  • 48V Power Supply with AC Cord Set(s)
  • EZCamera RS-232 Control Adapter
  • Installation Guide
MANUALS AND INSTRUCTIONS
User-Manual
