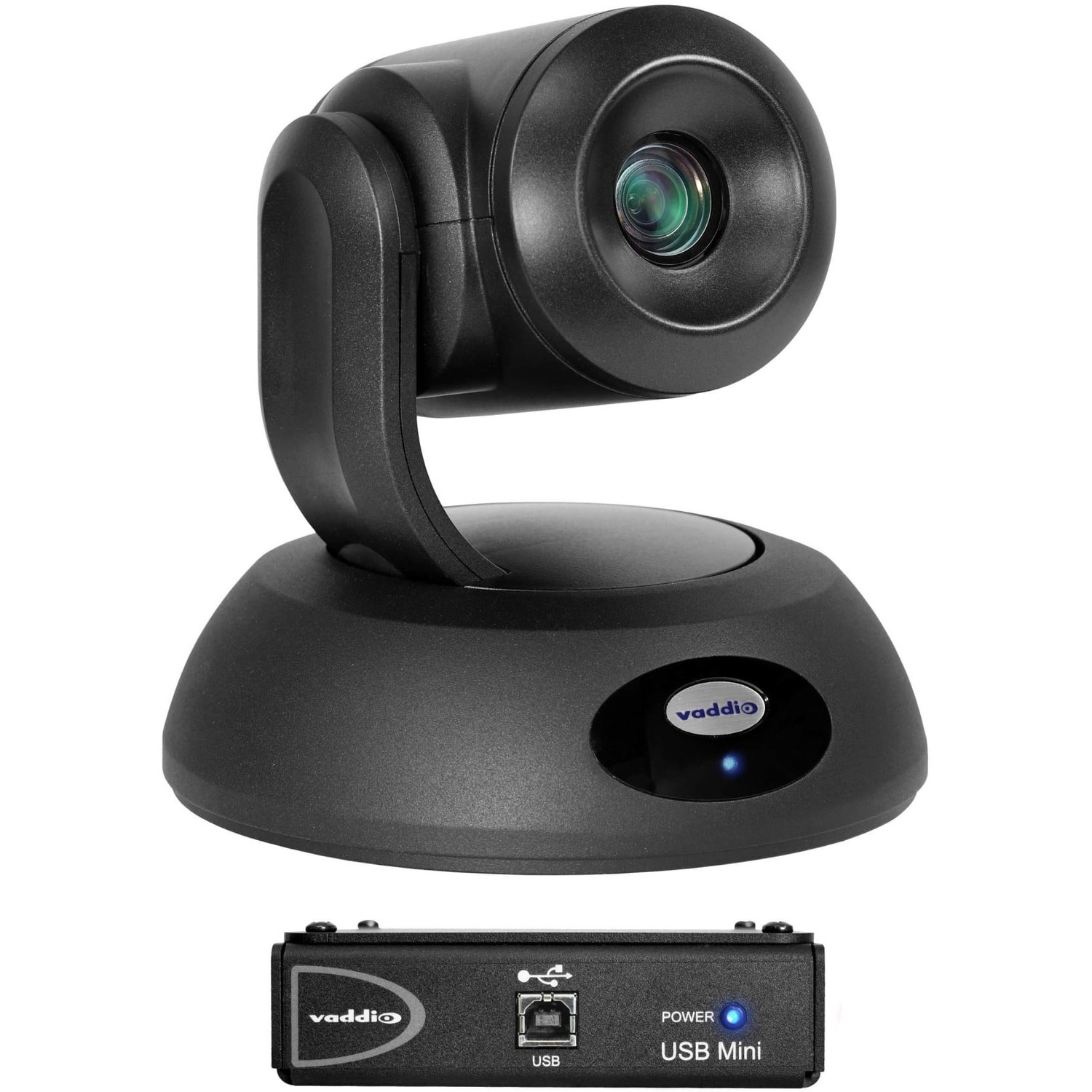

Vaddio RoboSHOT Elite Video Conferencing Camera - 8.5 Megapixel - 60 fps - Black

  • SKU: VSY-1010|MFG PART: 999-99010-000

$3,901.37

8.6 Megapixel Interpolated - 1920 x 1080 Video - Exmor R CMOS Sensor - Auto/Manual - Network (RJ-45)
  • 12x Optical Zoom
  • 1/2.5-type Exmor R CMOS sensor
  • 70.2° horizontal field of view
  • Power/Video/Control on two Cat-5's up to 100' (30.5m) for RoboSHOT Elite series cameras
  • USB 2.0 Output
View Product Overview

PRODUCT OVERVIEW

8.6 Megapixel Interpolated - 1920 x 1080 Video - Exmor R CMOS Sensor - Auto/Manual - Network (RJ-45)
  • 12x Optical Zoom
  • 1/2.5-type Exmor R CMOS sensor
  • 70.2° horizontal field of view
  • Power/Video/Control on two Cat-5's up to 100' (30.5m) for RoboSHOT Elite series cameras
  • USB 2.0 Output

additional information

Effective Resolution:
8.5 Megapixel
Interpolated Resolution:
8.6 Megapixel
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Image Sensor Type:
Exmor R CMOS
Focus Modes:
Auto/Manual
Network (RJ-45):
Yes
Color:
Black
Height:
6.9
Width:
7.1
Depth:
6.8
Weight (Approximate):
4.85 lb
Limited Warranty:
2 Year

Why this product?

Introducing the RoboSHOT Elite Series - Vaddio's next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.

The USB Mini was designed to require simple and effective USB 2.0, 720p/30 streaming and capture capabilities without the need for local analog or digital video outputs. The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mini will auto negotiate.

The USB Mini powers the camera, returns HSDS (differential) video with connectivity distances up to 100' using the Vaddio standard two Cat. 5 wiring platform. The USB Mini also offers easy mounting either on-wall or under-table with an integrated mounting tab.

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Legrand Group
Manufacturer Part Number:
999-99010-000
Manufacturer Website Address:
http://www.legrand.us
Brand Name:
Vaddio
Product Line:
RoboSHOT Elite
Product Name:
RoboSHOT 12E QMini System
Product Type:
Video Conferencing Camera

Display & Graphics

Effective Resolution:
8.5 Megapixel
Interpolated Resolution:
8.6 Megapixel
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Image Sensor Type:
Exmor R CMOS

Lens

Focus Modes:
Auto/Manual

Interfaces/Ports

Network (RJ-45):
Yes

Physical Characteristics

Color:
Black
Height:
6.9
Width:
7.1
Depth:
6.8
Weight (Approximate):
4.85 lb

Miscellaneous

Package Contents:
  • RoboSHOT 12E QMini System
  • Thin Profile Wall Mount with Mounting Hardware and Installation Manual
  • Vaddio IR Remote Commander
  • Quick-Connect USB Mini Interface (QMini)
  • 24V Power Supply with AC Cord Set(s)
  • Quick-Start Guides
  • 6' (1.83m) USB 2.0 Cable, Type A to B

Warranty

Limited Warranty:
2 Year
