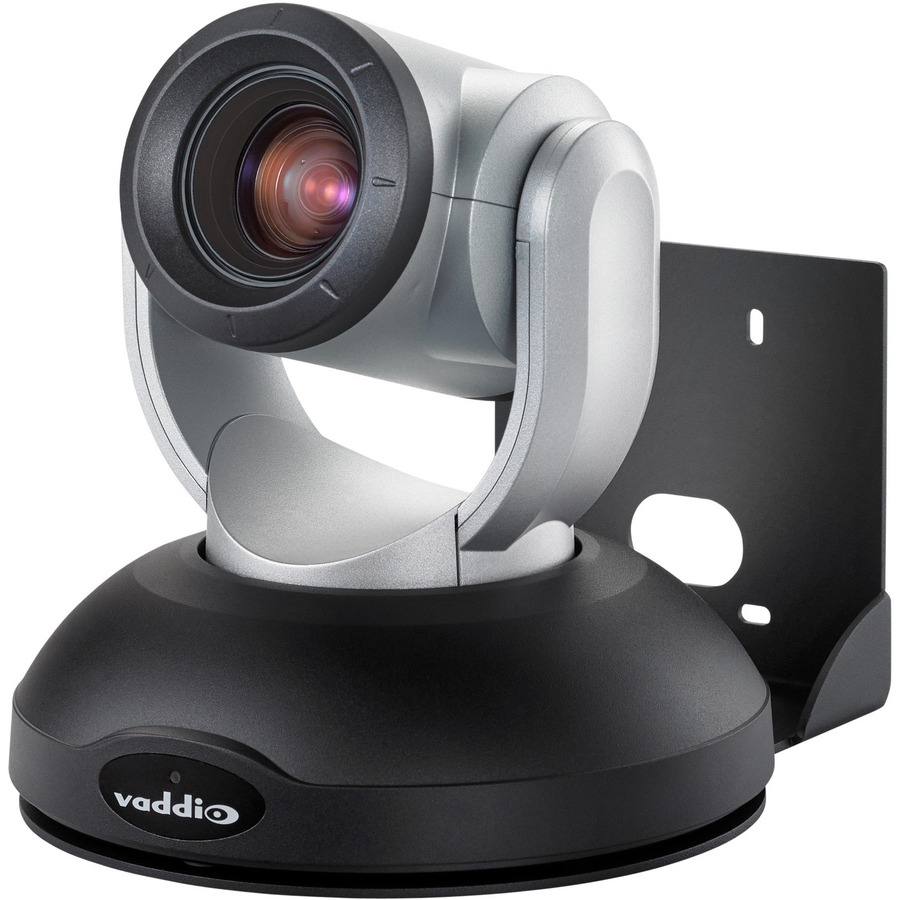

Vaddio RoboSHOT Video Conferencing Camera - 8.9 Megapixel - 30 fps - Silver, Black - TAA Compliant

  • SKU: VSY-1016|MFG PART: 999-9950-200

$6,857.10

9 Megapixel Interpolated - 3840 x 2160 Video - Exmor R CMOS Sensor - Auto/Manual - 1.7x Digital Zoom - Network (RJ-45) - Computer
  • Simple, clutter-free camera extension with HDBaseT technology
  • Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
  • Bridges audio and video for easy soft-client conferencing
  • Simultaneous HDMI, USB 3.0, IP Streaming, and HD-SDI outputs
  • Configurable audio matrix with AEC
View Product Overview

PRODUCT OVERVIEW

9 Megapixel Interpolated - 3840 x 2160 Video - Exmor R CMOS Sensor - Auto/Manual - 1.7x Digital Zoom - Network (RJ-45) - Computer
  • Simple, clutter-free camera extension with HDBaseT technology
  • Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
  • Bridges audio and video for easy soft-client conferencing
  • Simultaneous HDMI, USB 3.0, IP Streaming, and HD-SDI outputs
  • Configurable audio matrix with AEC

additional information

Effective Resolution:
8.9 Megapixel
Interpolated Resolution:
9 Megapixel
Maximum Video Resolution:
3840 x 2160
Maximum Frame Rate:
30 fps
Image Sensor Type:
Exmor R CMOS
Focus Modes:
Auto/Manual
Digital Zoom:
1.7x
Network (RJ-45):
Yes
HDMI Out:
Yes
Color:
Silver,Black
Height:
7.9
Width:
8
Depth:
7.7
Weight (Approximate):
6 lb
Device Supported:
Computer
TAA Compliant:
Yes
Limited Warranty:
2 Year

Why this product?

Ultra HD (4K) PTZ camera with pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces for applications such as higher education, corporate broadcast and houses of worship.

Total zoom range of 20x: 12x optical zoom lens with seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling.

With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Legrand Group
Manufacturer Part Number:
999-9950-200
Manufacturer Website Address:
http://www.legrand.us
Brand Name:
Vaddio
Product Line:
RoboSHOT
Product Name:
RoboSHOT 20 UHD OneLINK Bridge System
Product Type:
Video Conferencing Camera

Display & Graphics

Effective Resolution:
8.9 Megapixel
Interpolated Resolution:
9 Megapixel
Maximum Video Resolution:
3840 x 2160
Maximum Frame Rate:
30 fps
Image Sensor Type:
Exmor R CMOS

Lens

Focus Modes:
Auto/Manual
Digital Zoom:
1.7x

Interfaces/Ports

Network (RJ-45):
Yes
HDMI Out:
Yes

Physical Characteristics

Color:
Silver,Black
Height:
7.9
Width:
8
Depth:
7.7
Weight (Approximate):
6 lb

Miscellaneous

Package Contents:
  • RoboSHOT 20 UHD OneLINK Bridge System
  • Thin Profile Wall Mount with Mounting Hardware and Installation Manual
  • Vaddio IR Remote Commander
  • OneLINK Bridge Interface
  • 48V Power Supply with AC Cord Set(s)
  • Quick-Start Guides
  • 4 x 3-position Phoenix-style Connectors
  • 6' (1.8m) USB 3.0 Cable, Type A to B
  • EZCamera RS-232 Control Adapter
Device Supported:
Computer
TAA Compliant:
Yes

Warranty

Limited Warranty:
2 Year
MANUALS AND INSTRUCTIONS
User-Manual

Manufacturer-Brochure
