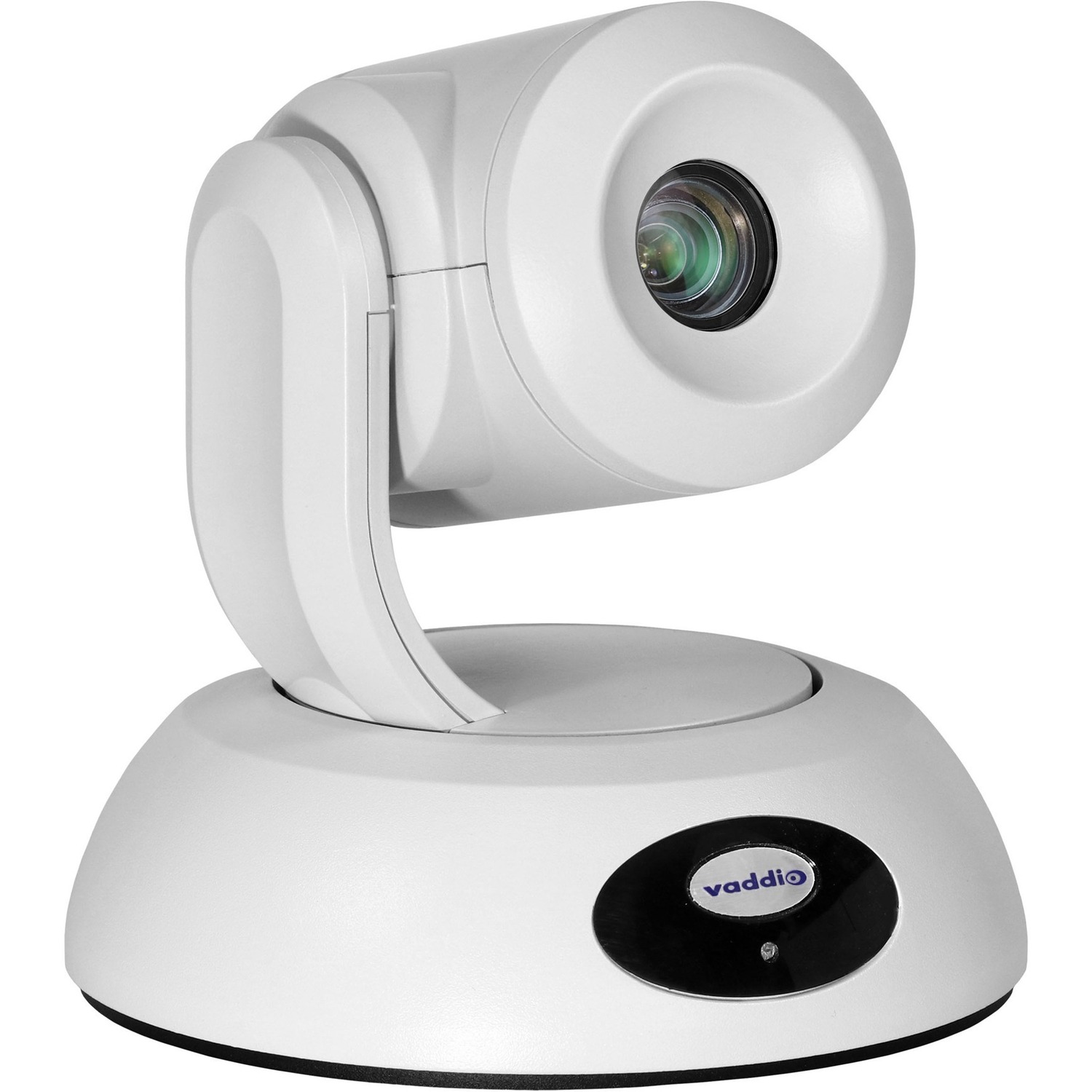

Vaddio RoboSHOT Elite Video Conferencing Camera - 8.5 Megapixel - 60 fps - White

  • SKU: VSY-1021|MFG PART: 999-99600-100W

$4,193.78

8.6 Megapixel Interpolated - 1920 x 1080 Video - Exmor R CMOS Sensor - Auto/Manual - Network (RJ-45)
  • 12x Optical Zoom
  • 1/2.5-type Exmor R CMOS sensor
  • 70.2° horizontal field of view
  • Simultaneous HDbaseT, HDMI and IP H.264 streaming
  • Remote IP Management
View Product OverviewView Reviews

PRODUCT OVERVIEW

8.6 Megapixel Interpolated - 1920 x 1080 Video - Exmor R CMOS Sensor - Auto/Manual - Network (RJ-45)
  • 12x Optical Zoom
  • 1/2.5-type Exmor R CMOS sensor
  • 70.2° horizontal field of view
  • Simultaneous HDbaseT, HDMI and IP H.264 streaming
  • Remote IP Management

additional information

Effective Resolution:
8.5 Megapixel
Interpolated Resolution:
8.6 Megapixel
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Image Sensor Type:
Exmor R CMOS
Focus Modes:
Auto/Manual
Network (RJ-45):
Yes
HDMI Out:
Yes
Color:
White
Height:
6.9
Width:
7.1
Depth:
6.8
Weight (Approximate):
4.85 lb
Limited Warranty:
2 Year

Why this product?

Introducing the RoboSHOT Elite Series - Vaddio's next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera's streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.

Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.

The system's OneLINK HDMI Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
Legrand Group
Manufacturer Part Number:
999-99600-100W
Manufacturer Website Address:
http://www.legrand.us
Brand Name:
Vaddio
Product Line:
RoboSHOT Elite
Product Name:
RoboSHOT 12E HDBT OneLINK HDMI System
Product Type:
Video Conferencing Camera

Display & Graphics

Effective Resolution:
8.5 Megapixel
Interpolated Resolution:
8.6 Megapixel
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Image Sensor Type:
Exmor R CMOS

Lens

Focus Modes:
Auto/Manual

Interfaces/Ports

Network (RJ-45):
Yes
HDMI Out:
Yes

Physical Characteristics

Color:
White
Height:
6.9
Width:
7.1
Depth:
6.8
Weight (Approximate):
4.85 lb

Miscellaneous

Package Contents:
  • RoboSHOT 12E HDBT OneLINK HDMI System
  • Thin Profile Wall Mount with Mounting Hardware and Installation Manual
  • Vaddio IR Remote Commander
  • OneLINK HDMI Interface
  • 48V Power Supply with AC Cord Set(s)
  • EZCamera RS-232 Control Adapter
  • Quick-Start Guides

Warranty

Limited Warranty:
2 Year
