Tap Image to zoom

ClearOne Microphone_subImage_1

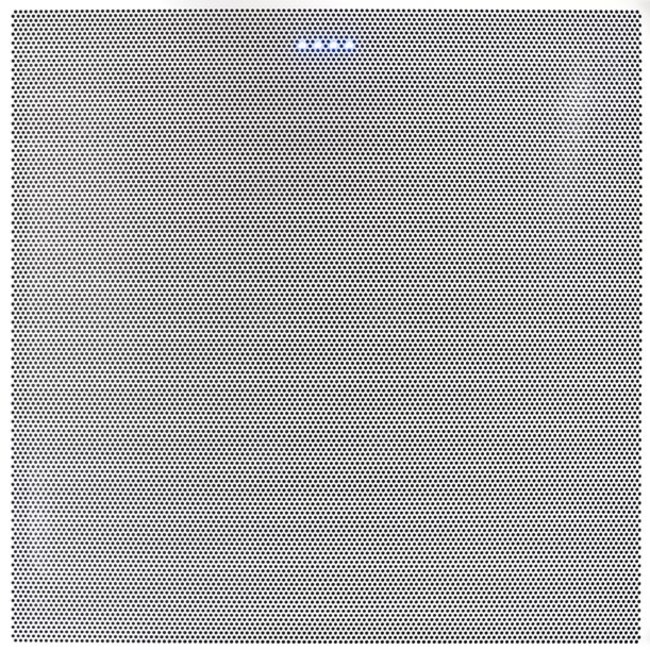

ClearOne Microphone

  • SKU: CJE-10145|MFG PART: 910-3200-205

$3,001.99

70 dB - Ceiling Mount
View Product Overview

PRODUCT OVERVIEW

70 dB - Ceiling Mount

additional information

Noise Canceling:
Yes
Microphone Type:
Ceiling Mount
Microphone Sensitivity:
70 dB
Height:
23.7
Width:
23.7
Depth:
2.1
Weight (Approximate):
7.72 lb
Country of Origin:
China
Limited Warranty:
3 Year

Why this product?

The BMA CT is a patented ceiling tile beamforming mic array that blends in perfectly with today's drop ceilings.

Built in acoustic echo cancellation, noise cancellation, and beam selection eliminate the need for per-beam processing in a DSP mixer - requiring fewer DSP mixer resources.

Built in 2x10 Watt into 8-ohm power amplifier conveniently drives loudspeakers.

Convenient Ceiling-Tile Form Factor
  • Drops easily into standard ceiling-tile grid systems
  • Integrated features significantly reduce system design complexity
  • Simple installation
  • Consumes less rack space
  • Lower cost
  • Three sizes available to fit US and international ceiling-grid tile sizes
Advanced Audio Processing
  • Most advanced Acoustic Echo Cancellation
  • Noise Cancellation
  • Adaptive steering (think of it as smart switching) - no need to adjust individual beams
  • Advanced gating with adaptive ambient for seamless combining of multiple BMA CT units
  • Replaces 9 to 12 traditional microphones
Flexible, Scalable, and Cost-Effective
  • Built-in processing eliminates the need for per-beam processing in a DSP mixer - requiring fewer DSP mixer resources
  • Daisy-chain ceiling tiles via P-Link for larger conference set-ups - for simpler wiring and longer distances compared to networked home run connections
  • Daisy-chain P-Link devices such as the DIALOG® 20 Wireless Mic System
  • Long distance P-Link mode allows 650 ft (200 m) between tiles for a total cable reach of 1950 ft (600 m)
  • Single cable for power, audio, and control
  • Zero consumption of DSP mixer analog inputs
Configuration & Management
  • Pro CONSOLE® software
  • Auto-discovery of devices
  • System monitoring and troubleshooting

TECHNICAL SPECIFICATIONS

Specifications

Manufacturer:
ClearOne
Manufacturer Part Number:
910-3200-205
Manufacturer Website Address:
http://www.clearone.com
Brand Name:
ClearOne
Product Name:
Beamforming Microphone Array | BMA CT
Product Type:
Microphone

Technical Information

Noise Canceling:
Yes

Microphone

Microphone Type:
Ceiling Mount
Microphone Sensitivity:
70 dB

Physical Characteristics

Height:
23.7
Width:
23.7
Depth:
2.1
Weight (Approximate):
7.72 lb

Miscellaneous

Country of Origin:
China

Warranty

Limited Warranty:
3 Year
